X-Lazy QX-009J8 Kinetic Self-Powered Wireless Doorbell and Caregiver Pager Kit (Battery-Free, Long Range, IP44 Waterproof)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
Why Switch to X-Lazy Kinetic Technology?
Say goodbye to complex wiring, damaged drywall, and dead batteries. Experience true wireless independence.
Traditional Hardware Setup
- Expensive Labor Costs: Hiring electricians costs upwards of $100–$150/hour.
- Messy Wall Alterations: Drilling, cutting drywall, and routing long internal copper wires.
- Maintenance Headaches: Standard wireless devices require frequent, annoying battery swaps.
- Fixed Placement: Once hardwired, moving switches or chimes requires breaking walls again.
X-Lazy Self-Powered Solution
- $0 Professional Installation: Easy 5-minute DIY setup with zero technical skills needed.
- 100% Battery-Free: Built-in micro energy harvesting generates power instantly on every press.
- Zero Wall Damage: Mount seamlessly on glass, tile, wood, or drywall using strong 3M adhesive.
- Ultra-Durable & Sustainable: Tested for over 200,000 presses for decades of reliable use.
- Energy Harvesting Technology: Harnesses kinetic pressing force into instant RF signals—100% battery-free and eco-friendly.
- IP44 Outdoor Weatherproof: Built to endure severe weather, including heavy rain, snow, and extreme ambient temperature shifts.
- Extended Signal Penetration: Strong RF signal penetration reaching up to 150m (490ft) across walls, gates, and doors.
- Multi-Chime & Adjustable Volume: Features customizable melodies with adjustable volume settings, plus visual LED notification.
- Multi-Kit Flexibility: Choose from 1-to-1, 1-to-2, or 2-to-1 setups to perfectly suit your living space layout.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
Technical parameters
1. Operating voltage: AC 110-250V
2. Power consumption: 0.25W
3. Wireless frequency: 433 MHz
4. Ringtone volume: ≥50dB/1m+
5. Operating temperature: -10 °C ~ +45 °C
6. Wireless distance: 150 meters (open space)

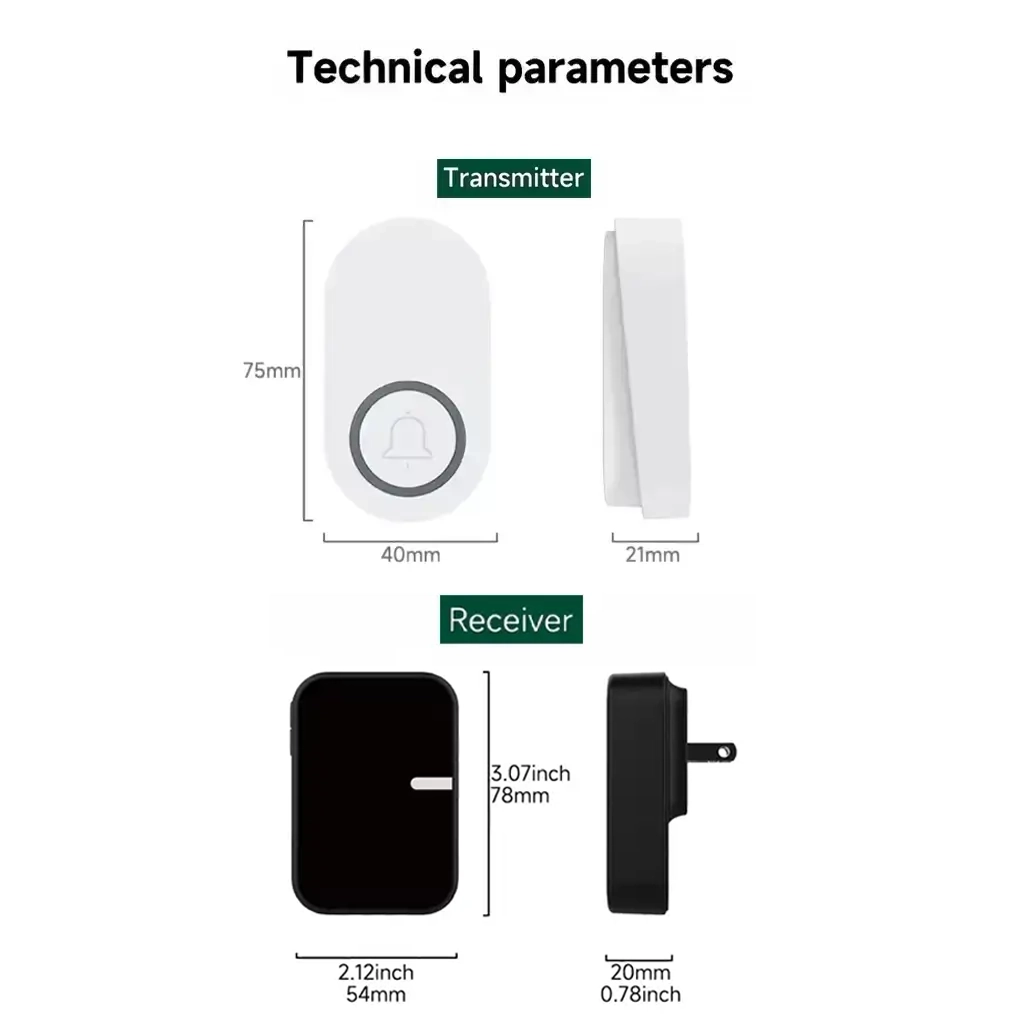

7. Receiver size: L78 × W54 × H25mm
8. Transmitter: no need battery
9. Transmitter size: L75 × W40 × H21mm
Advantage
1. This doorbell does not need batteries and wiring. It is plug and play, convenient and practical, and easy to install.
2. Built-in 38 welcome music/4 adjustable volume (including mute).
3. IP44 waterproof grade, can effectively prevent rain intrusion, and can prevent sun and water.
4. 150 meters remote control distance (open space), indoor distance is about 50 meters (no partition) (this data is the obstacle free test distance of the experimental open space, the actual distance will vary depending on the use environment and the obstacles, please take the actual distance as the standard).
5. Applicable scene: residence, hotel, villa, hospital.
6. Function: learning code.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide

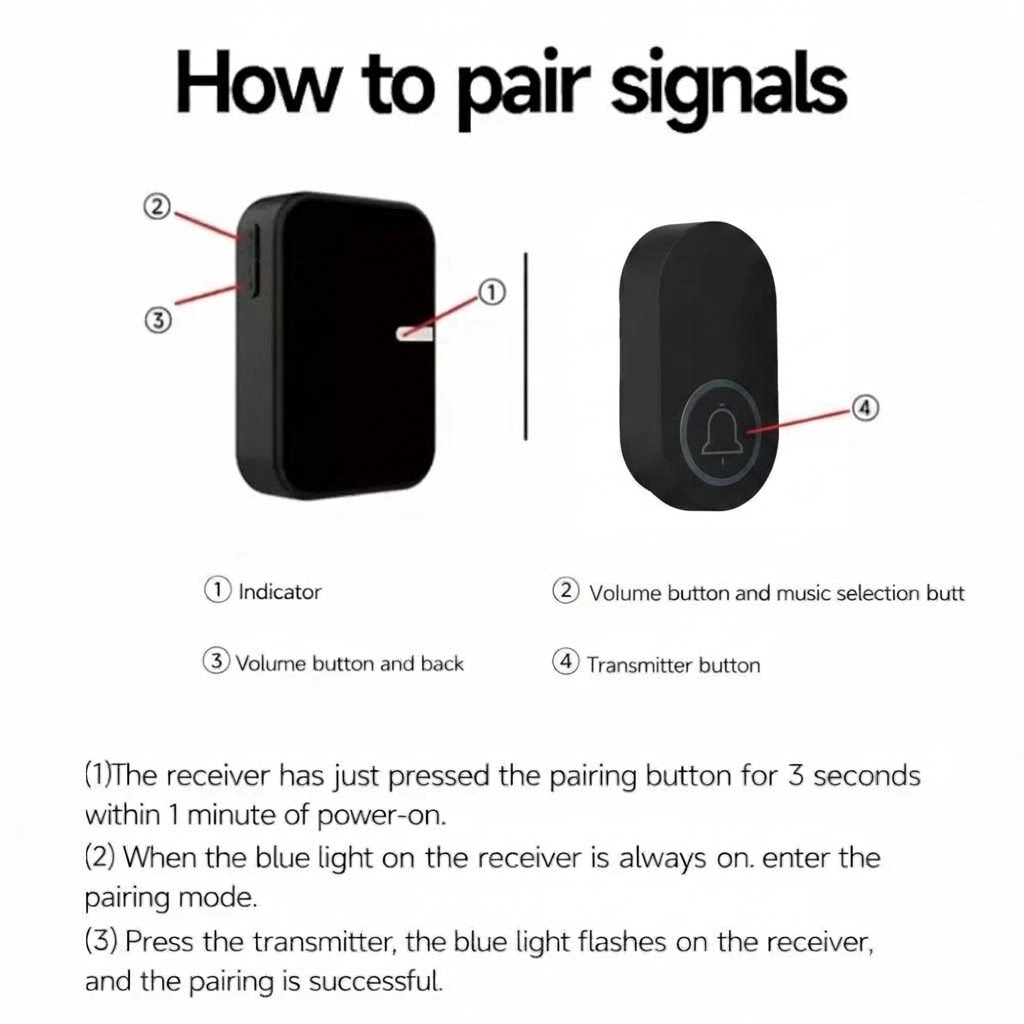

🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.
🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.
🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your X-Lazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact X-Lazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.
Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
Sustainable Micro Energy Harvesting Innovation
Upgrade your front entrance with the X-Lazy QX-009J8 Kinetic Self-Powered Wireless Doorbell. Engineered with micro energy harvesting tech, every press of the outdoor button generates immediate electrical power. Never worry about missed deliveries due to dead transmitter batteries again.
IP44 Weatherproof & Rugged Outdoor Casing
Built for all-weather durability, the QX-009J8 outdoor transmitter is rated IP44 waterproof. Whether subjected to heavy rainfall, freezing temperatures, or high summer heat, it maintains reliable signal communication year-round.

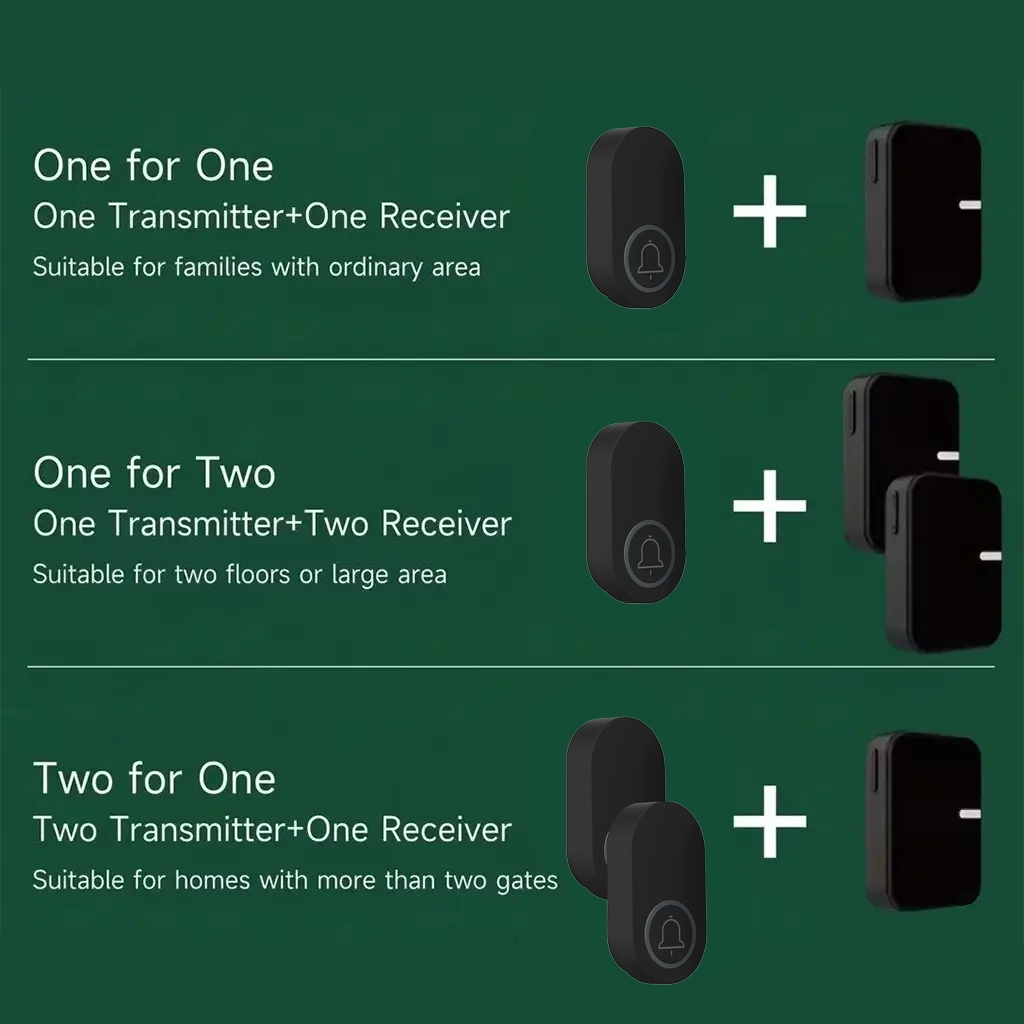

Flexible Multi-Kit Configurations
Select the ideal combination kit based on your home or office architecture:
- 1 Transmitter + 1 Receiver: Perfect for standard front door apartments or smaller houses.
- 1 Transmitter + 2 Receivers: Great for multi-floor homes to ensure chimes are heard clearly across rooms.
- 2 Transmitters + 1 Receiver: Ideal for properties with separate front gates and backyard doors.
Technical Specifications
| Operating Voltage | AC 110V – 250V (Plug-in Receiver) |
| Power Source | Kinetic Energy Harvesting (Transmitter, No Battery Needed) |
| Waterproof Rating | IP44 Outdoor Waterproof |
| Wireless Range | Up to 150m / 490ft (Open Area) |
| Signal Frequency | 433.92 MHz RF Transmission |
Frequently Asked Questions (FAQ)
Q: How does energy harvesting work in this doorbell?
A: The mechanical force from pressing the outdoor button is instantly converted into electrical energy, powering the internal micro transmitter to send a wireless signal to the receiver.
Q: Is the installation complicated?
A: Not at all. Stick the outdoor button using adhesive tape or screws, plug the receiver into an indoor outlet, and it is ready to work.
