Xlazy QX-304FS Circular Acrylic Kinetic Wireless Switch and Receiver Kit (301JS Controller, Battery-Free)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
- Circular Acrylic Design: Premium acrylic faceplate with smooth tactile feedback, blending high-end aesthetics with modern minimalist interiors.
- Kinetic Self-Powered Technology: Converts mechanical press power into instant electrical signals—100% battery-free, green, and maintenance-free.
- Compact 301JS Receiver: Fits seamlessly into junction boxes, light fixtures, or drop ceilings for effortless lighting automation.
- Damage-Free Wall Mounting: Stick the switch on glass, wood, marble, or tile walls anywhere using double-sided adhesive tape or mounting screws.
- Reliable Long-Range RF Signal: Stable 433MHz RF wireless connection with strong penetration through doors and walls up to 100m in open space.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
No battery US standard self-powered wireless switch IP44 waterproof switch Permanent battery life Simple installation One-to-many, many-to-one smart switch
Remote Control
1. Working voltage: AC 100V-240V 50/60Hz
2. Rated Current: AC 10A
3. Maximum current: 16A
4. Working frequency: 433.92MHZ
5. Product size: L60*W42*28mm(301JS)
6.Control distance: 30-100m
7.WiFi: No WiFi
Self-powered wireless switch
1. Type of work: ON /OFF
2. Power mode: Kinetic energy self-generation
3. Working frequency: 433.92 MHZ
4. Number of buttons:1-3 keys
5. Switching times: More than 200,000 times
6. Product size: L86*W86*23mm
7. Launch distance: 100M (outdoor), 30M (indoor)
Advantage
This is a self-powered wireless remote control switch that does not require a battery and can be used directly after buying it. The appearance is beautiful and elegant, and it is the best choice for switches:
1. Save wires and save labor, no risk of electric shock and combustion without contact with strong electricity, no heat source inside and no temperature rise influence.
2. One lamp holder can be matched with multiple free sticker switches at the same time to realize that one lamp can switch the lamp in multiple places! Solve the problems of no switch on the bed, turning on the lights at night, unreasonable circuit design, inappropriate switch height for the elderly and children at home, and inconvenient wiring at home because of aging wiring!
3. After a power failure, the power will self-extinguish to avoid waste of electricity and will not interfere with each other. It adopts digital coding and decoding technology and has no directionality; high-performance processing chip, built-in relay control, safer and more stable, super heterodyne receiving module ultra-low power consumption Strong anti-interference and high sensitivity!
Wireless switch panel:
1. Features: Self-powered No battery required.
2. Features: Waterproof Can turn it on in the wet environment, No risk of electric shock.
3. Features: Strong wireless signal.
This switch can be conteolled the lights in the room even outside the room.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide

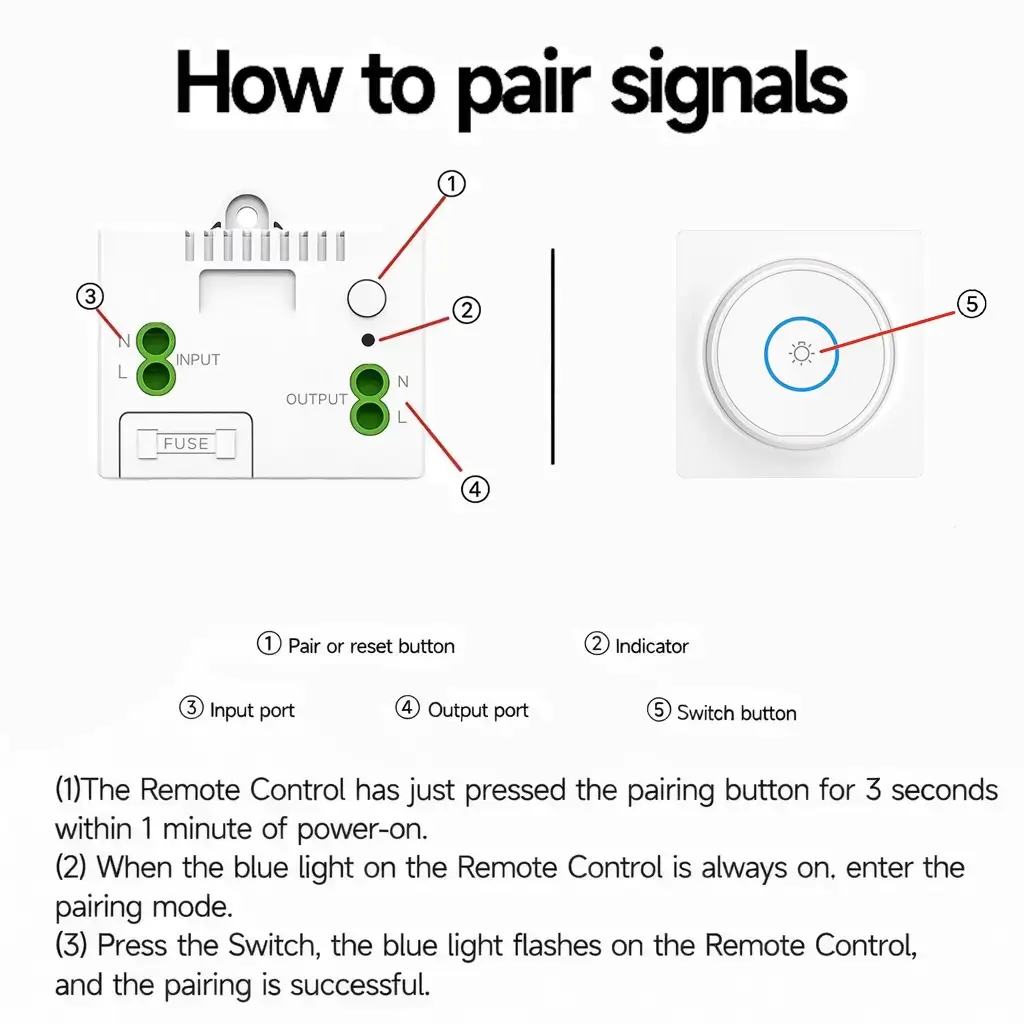

🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.
🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.
🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your Xlazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact Xlazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.

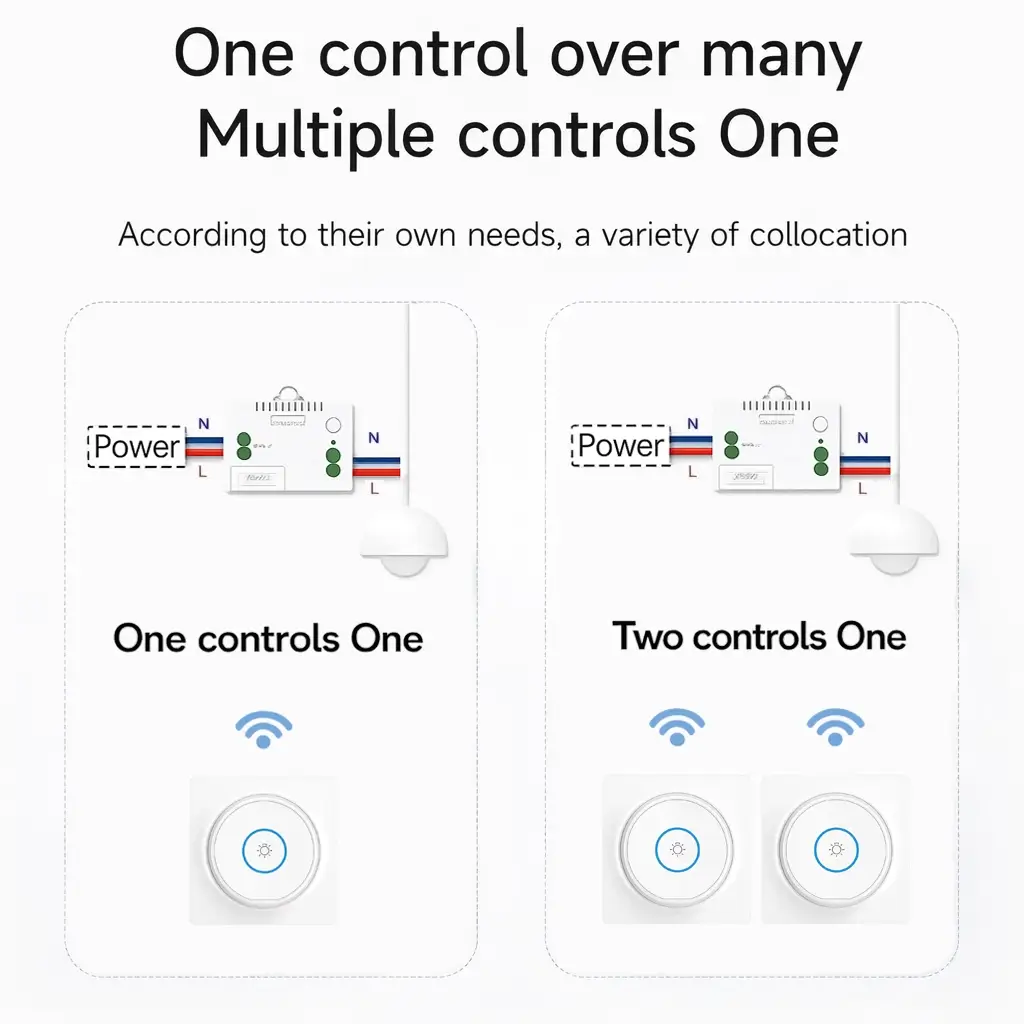

Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
Aesthetic Elegance Meets Micro Energy Harvesting
Combine luxury aesthetics with eco-friendly smart home engineering using the Xlazy QX-304FS Circular Acrylic Kinetic Switch & 301JS Receiver Kit. Driven by advanced kinetic energy harvesting, every press converts physical force into electricity to send instant wireless control commands to your lighting fixtures.

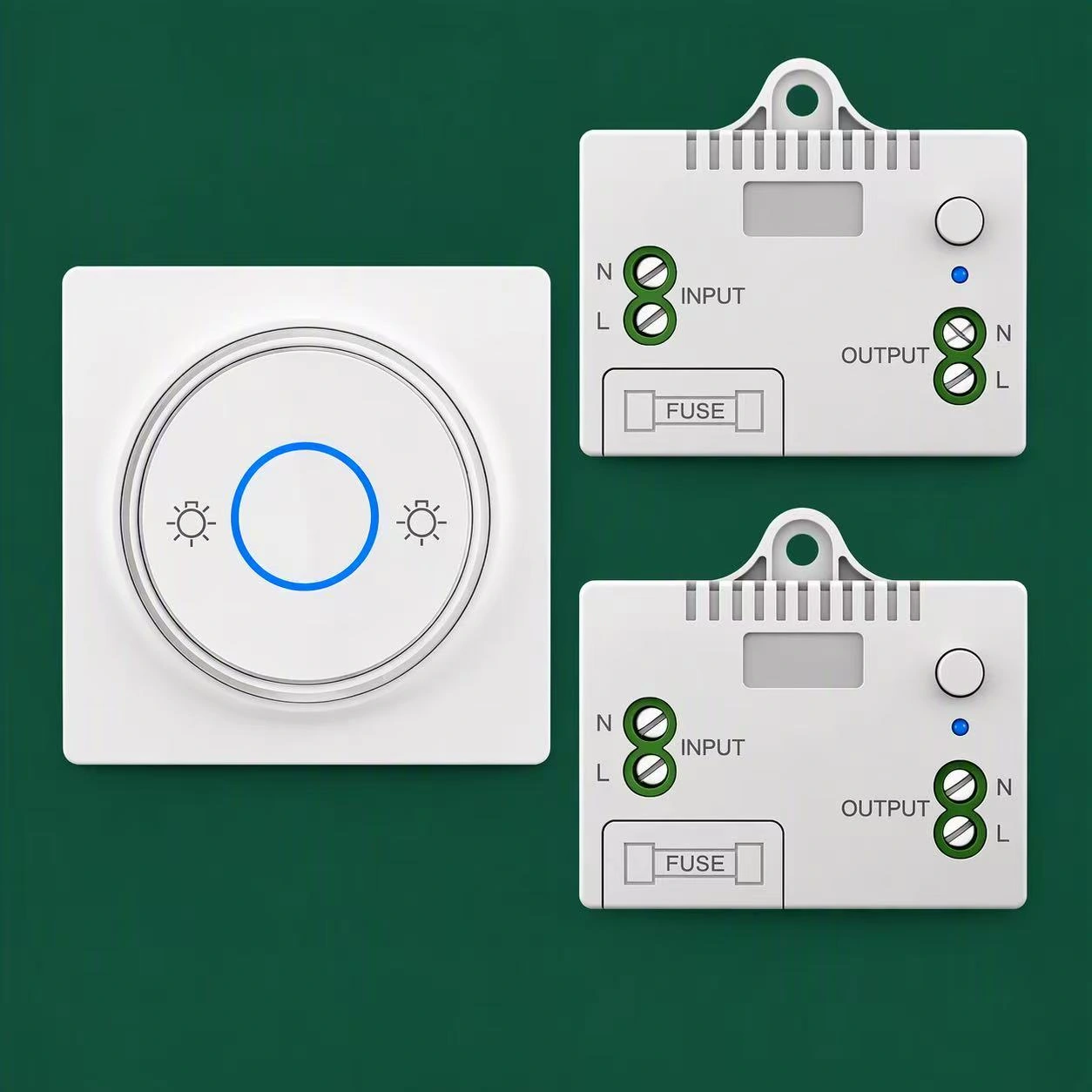

301JS Wireless Receiver Controller Integration
The accompanying 301JS receiver module easily connects between your home’s power line and existing lamps or lighting circuits. Its slim design enables hidden installation inside light canopies, wall boxes, or false ceilings, transforming conventional lights into wirelessly controllable smart fixtures.
Versatile Home Lighting Solutions
Perfect for home renovations, bedside remote switching, staircase light control, or adding extra switches without running new wires:
- Flexible Mounting: Place the circular switch on nightstands, glass partitions, tile walls, or furniture surfaces.

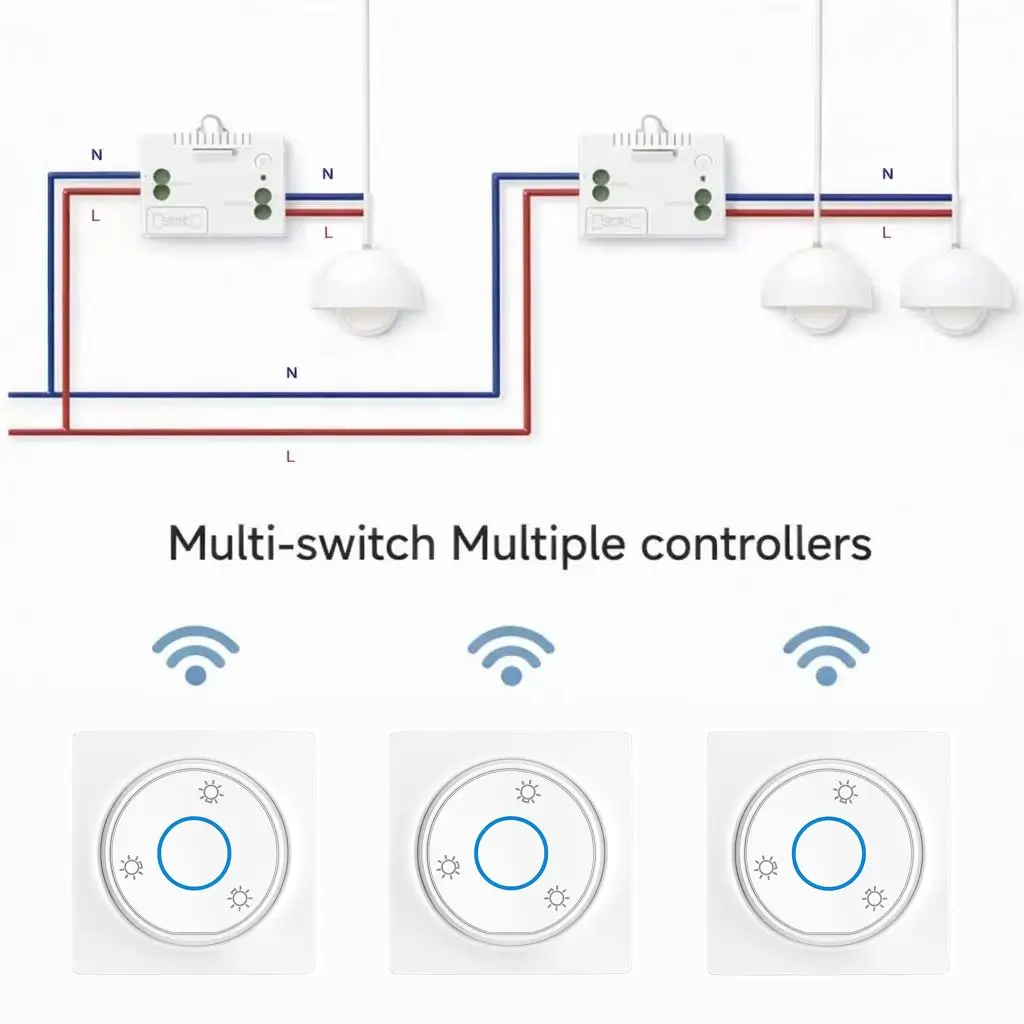

- Multi-Location Control: Pair multiple QX-304FS circular kinetic switches to a single 301JS receiver for multi-way switching convenience.

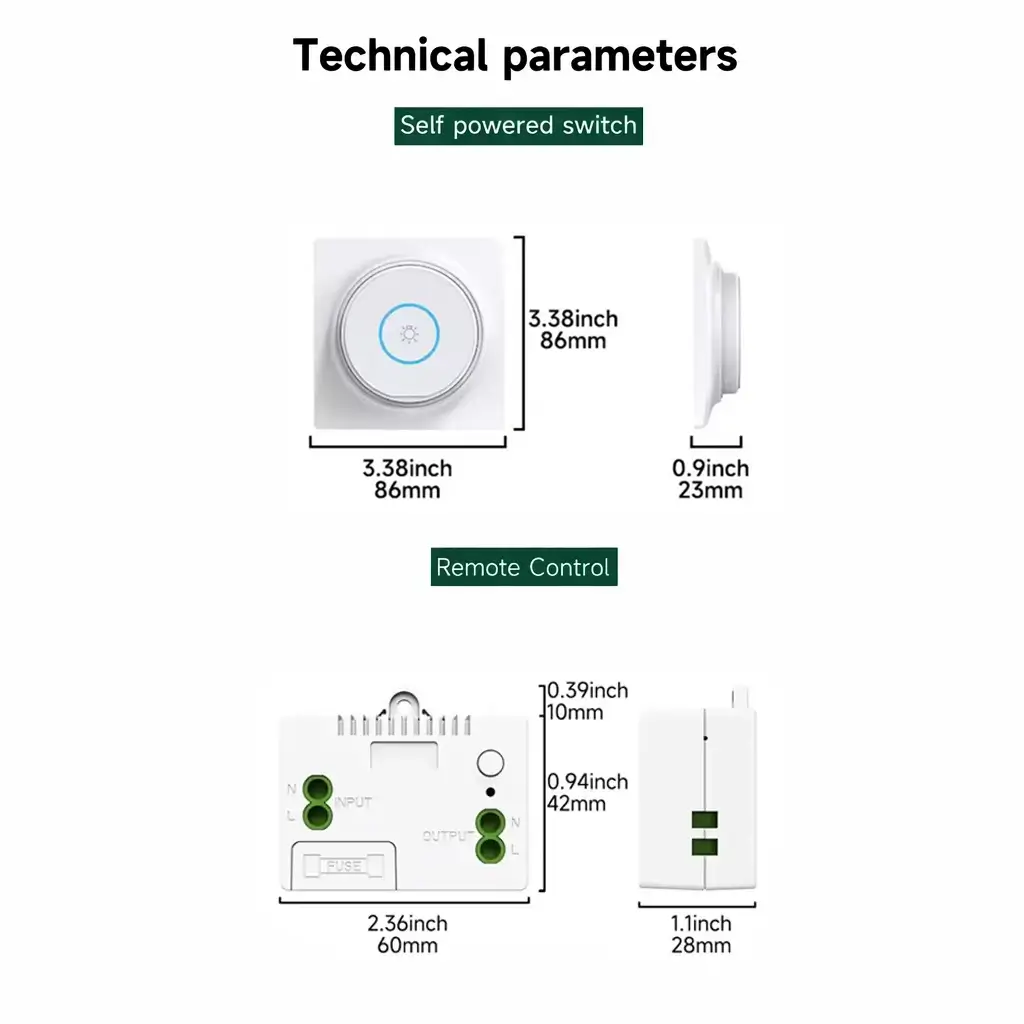

Technical Specifications
| Switch Model | QX-304FS (Circular Acrylic Kinetic Switch) |
| Receiver Model | 301JS (RF Receiver Controller) |
| Power Source | Kinetic Energy Harvesting (Switch, No Battery Needed) |
| Receiver Input Voltage | AC 85V – 260V (50/60Hz) |
| Wireless Range | Up to 150m / 330ft (Open Area) |
| Operating Frequency | 433.92 MHz RF |
Frequently Asked Questions (FAQ)
Q: Does the QX-304FS circular switch require any batteries or internal wiring?
A: No! The switch operates on kinetic energy harvesting. Pressing the acrylic switch panel generates all the power needed to send a wireless RF command to the 301JS receiver.
Q: Is the acrylic panel scratch-resistant and easy to clean?
A: Yes, the switch surface is made with durable acrylic material that resists daily wear, wipes clean easily, and keeps its glossy finish over time.
Say goodbye to tearing up drywall! We added a 3-way switch solution to our staircase in less than 10 minutes. The receiver was easy to wire behind the light fixture, and the kinetic wall switch responds instantly with zero lag. Highly impressed by the build quality.
