Xlazy QX-301FS Kinetic Rocker Wireless Switch and Receiver Kit (301JS Controller, Battery-Free)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
- Classic Type 86 Rocker Design: Traditional rocker switch styling that blends seamlessly into standard modern home switch layouts.
- Kinetic Self-Powered Operation: Harnesses mechanical pressing power into instant electrical signals—100% battery-free and eco-friendly.
- Compact 301JS Receiver: Fits discreetly into junction boxes, light fixture canopies, or drop ceilings for wireless lighting control.
- Flexible Damage-Free Mounting: Mount the wireless rocker switch anywhere on glass, wood, marble, or tile without running new cables.
- High-Penetration 433MHz RF Signal: Reliable wireless signal transmission through walls and doors up to 100m in open spaces.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
No battery US standard self-powered wireless switch IP44 waterproof switch Permanent battery life Simple installation One-to-many, many-to-one smart switch
Remote Control
1. Working voltage: AC 100V-240V 50/60Hz
2. Rated Current: AC 10A
3. Maximum current: 16A
4. Working frequency: 433.92MHZ

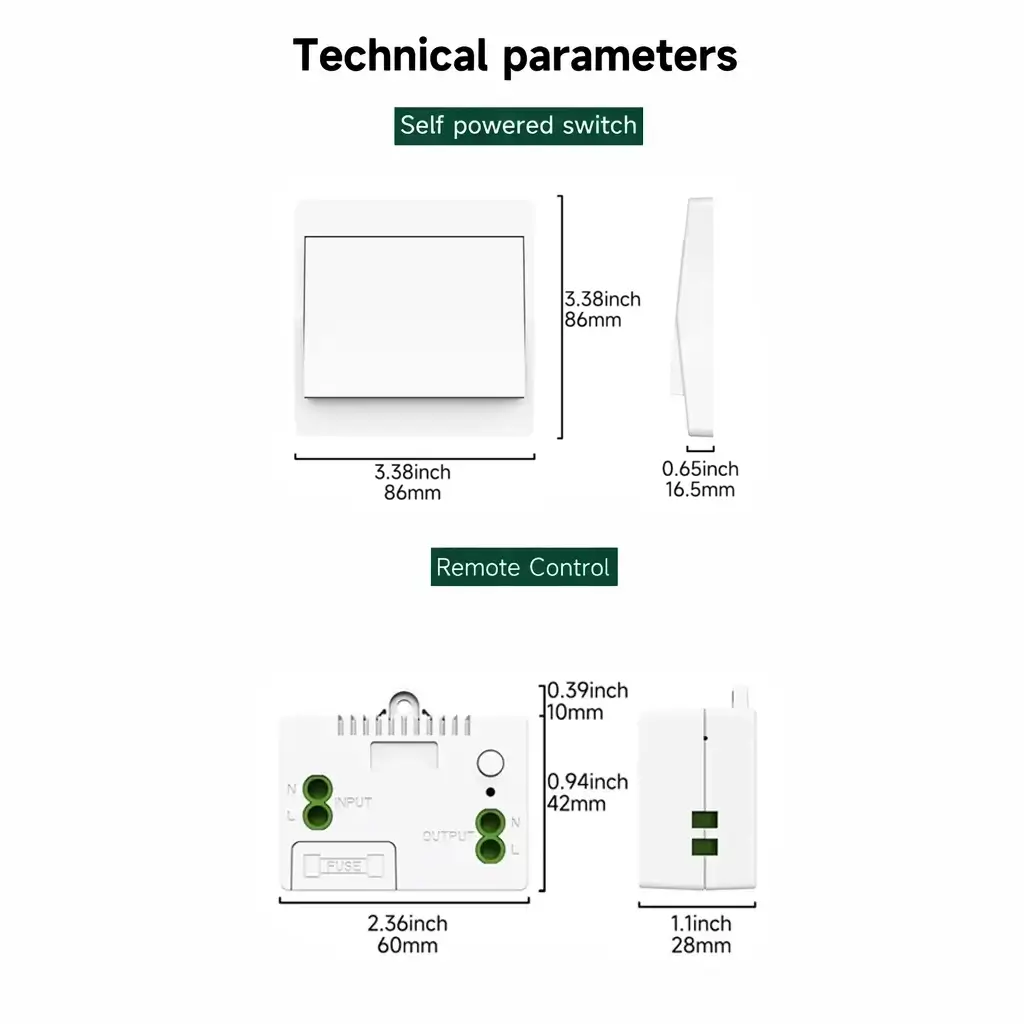

5. Product size: L60*W42*28mm(301JS)
6.Control distance: 30-100m
7.WiFi: No WiFi
Self-powered wireless switch
1. Type of work: ON /OFF
2. Power mode: Kinetic energy self-generation
3. Working frequency: 433.92 MHZ
4. Number of buttons:1-2 keys
5. Switching times: More than 200,000 times
6. Product size: L86*W86*16.5mm
7. Launch distance: 100M (outdoor), 30M (indoor)
Advantage
This is a self-powered wireless remote control switch that does not require a battery and can be used directly after buying it. The appearance is beautiful and elegant, and it is the best choice for switches:
1. Save wires and save labor, no risk of electric shock and combustion without contact with strong electricity, no heat source inside and no temperature rise influence.
2. One lamp holder can be matched with multiple free sticker switches at the same time to realize that one lamp can switch the lamp in multiple places! Solve the problems of no switch on the bed, turning on the lights at night, unreasonable circuit design, inappropriate switch height for the elderly and children at home, and inconvenient wiring at home because of aging wiring!
3. After a power failure, the power will self-extinguish to avoid waste of electricity and will not interfere with each other. It adopts digital coding and decoding technology and has no directionality; high-performance processing chip, built-in relay control, safer and more stable, super heterodyne receiving module ultra-low power consumption Strong anti-interference and high sensitivity!
Wireless switch panel:
1. Features: Self-powered No battery required.
2. Features: Waterproof Can turn it on in the wet environment, No risk of electric shock.
3. Features: Strong wireless signal.
This switch can be conteolled the lights in the room even outside the room.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide
🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.

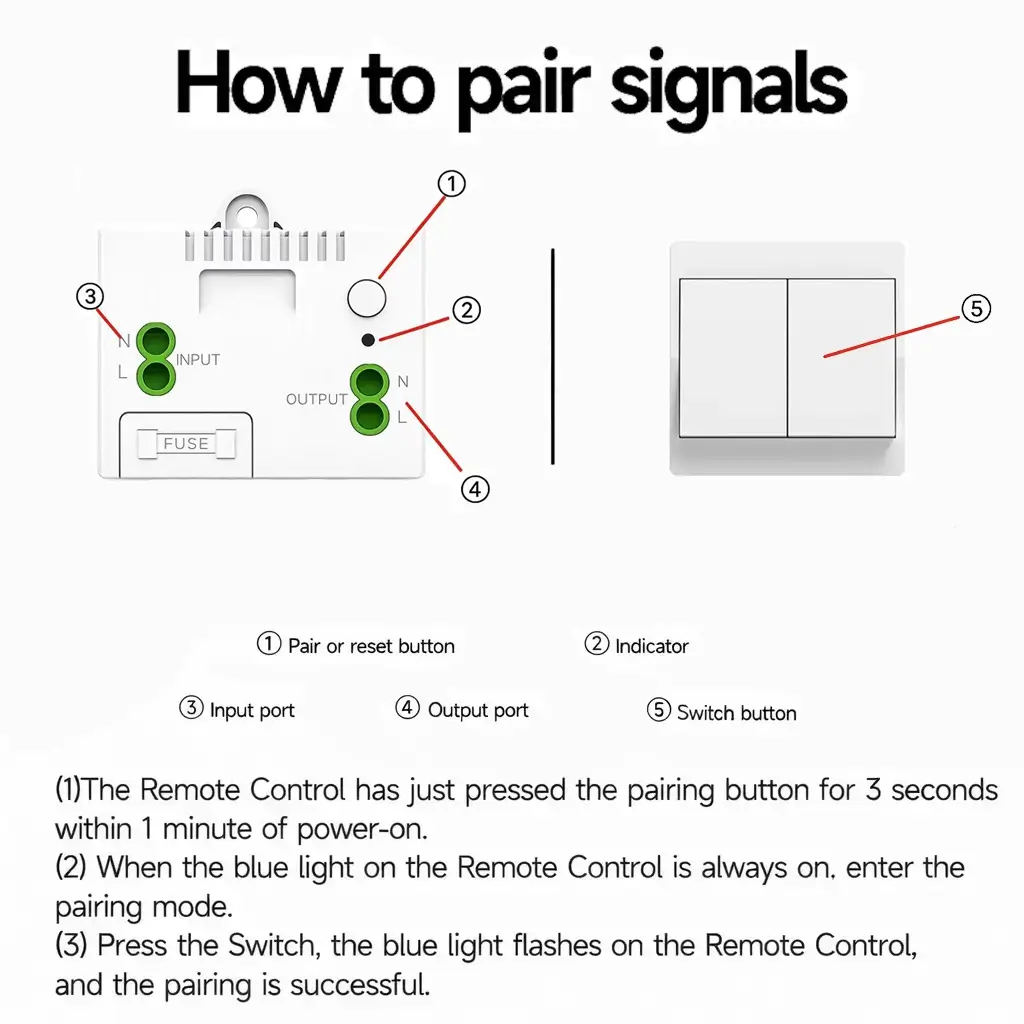

🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.

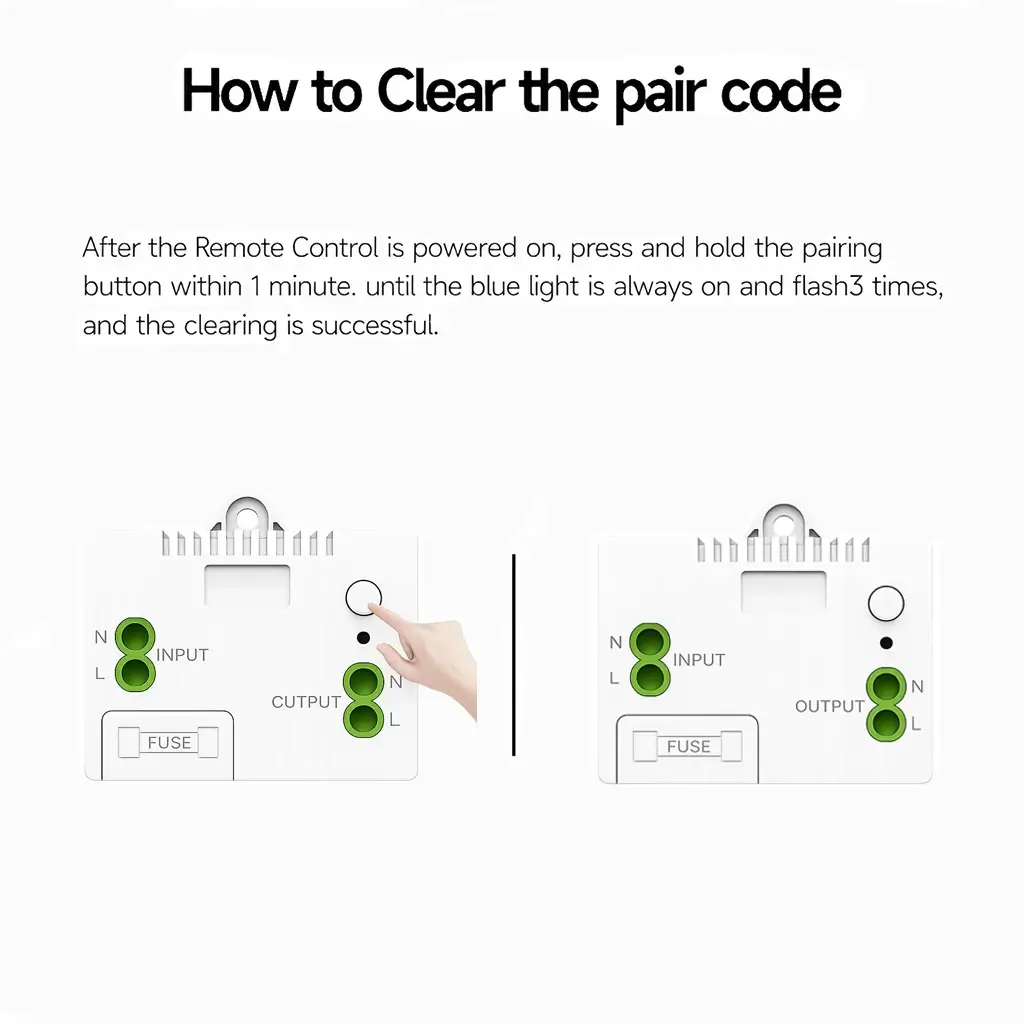

🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your Xlazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact Xlazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.

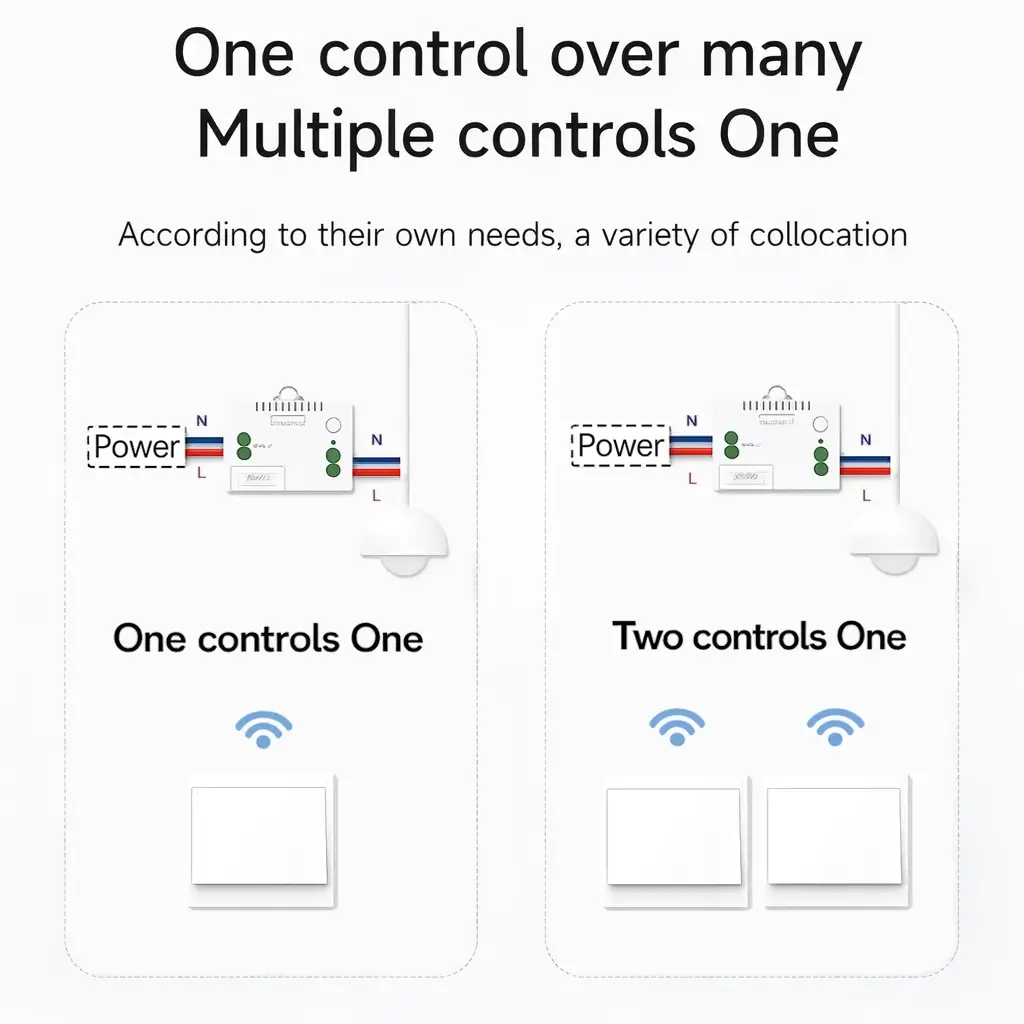

Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
Traditional Rocker Design Powered by Kinetic Technology
Upgrade your home lighting setup with the Xlazy QX-301FS Kinetic Rocker Wireless Switch and 301JS Receiver Kit. Driven by micro energy harvesting technology, pressing the classic rocker panel converts physical press motion into immediate RF wireless commands. Enjoy zero battery maintenance, zero wall tearing, and zero dangerous electrical wiring work.
301JS Compact Wireless Light Controller
The included 301JS receiver module easily wires between your power supply and lighting fixtures. Its slim profile enables hidden installation inside fixture bases, wall boxes, or dropped ceilings, instantly converting standard light circuits into wirelessly controllable smart lights.
Versatile Home Lighting Retrofit
Ideal for home renovations, adding bedside switches, controlling staircase lights, or replacing hardwired switches without cutting into walls:
- Surface Mounting: Stick the QX-301FS switch anywhere on walls, glass partitions, or bedside tables using adhesive tape or screws.

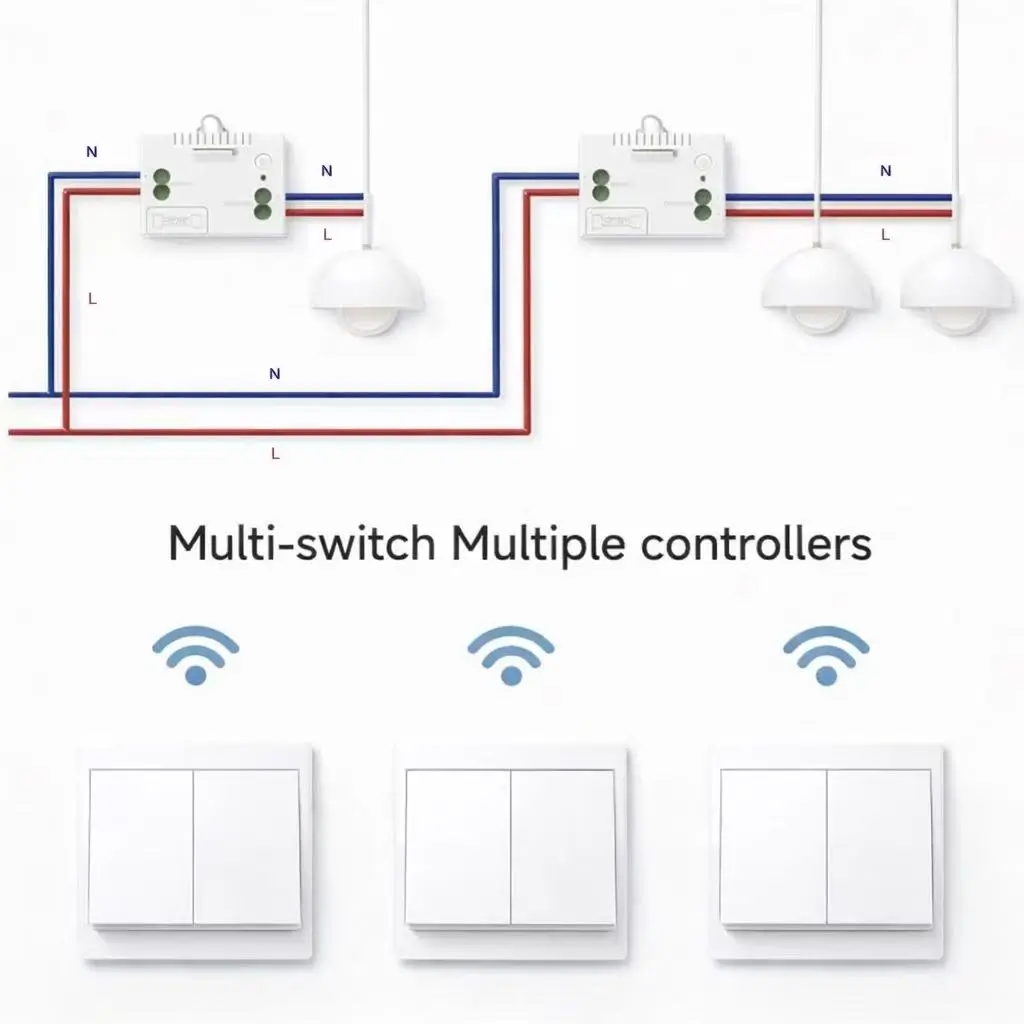

- Multi-Switch Control: Pair multiple kinetic switches to a single 301JS receiver to easily set up 3-way or multi-location switching setups.
Technical Specifications
| Switch Model | QX-301FS (Type 86 Kinetic Rocker Switch) |
| Receiver Model | 301JS (RF Receiver Controller) |
| Power Source | Kinetic Energy Harvesting (Switch, No Battery Needed) |
| Receiver Voltage | AC 85V – 260V (50/60Hz) |
| Wireless Distance | Up to 150m / 330ft (Open Area) |
| Operating Frequency | 433.92 MHz RF |
Frequently Asked Questions (FAQ)
Q: Does the QX-301FS rocker switch need any internal batteries or hardwiring?
A: No! The switch operates on kinetic energy harvesting. Pressing the rocker button generates all the power required to send a wireless RF signal to the 301JS receiver module.
Q: Can I replace my existing wall switch with this kit?
A: Yes! Simply install the 301JS receiver inside the light fixture or junction box, and mount the QX-301FS kinetic switch wherever it is most convenient.
