Xlazy QX-308FS Kinetic Multi-Way Wireless Switch and Receiver Kit (306JS Controller, Battery-Free)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
- Kinetic Self-Powered Operation: Harnesses mechanical pressing power into instant electrical signals—100% battery-free and eco-friendly.
- Effortless Multi-Way Control: Easily set up 2-way or multi-switch control for staircases, long hallways, and master bedrooms.
- Compact 301JS/306JS Receiver Integration: Fits discreetly into junction boxes, light fixture canopies, or drop ceilings for wireless lighting control.
- Flexible Damage-Free Mounting: Mount the wireless switch anywhere on glass, wood, marble, or tile without running new cables.
- High-Penetration 433MHz RF Signal: Reliable wireless signal transmission through walls and doors up to 100m in open spaces.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
No battery US standard self-powered wireless switch IP44 waterproof switch Permanent battery life Simple installation One-to-many, many-to-one smart switch
Remote Control
1. Working voltage: AC 100V-240V 50/60Hz
2. Rated Current: AC 10A
3. Maximum current: 16A
4. Working frequency: 433.92MHZ
5. Storage switch quantity: 10 transmitters

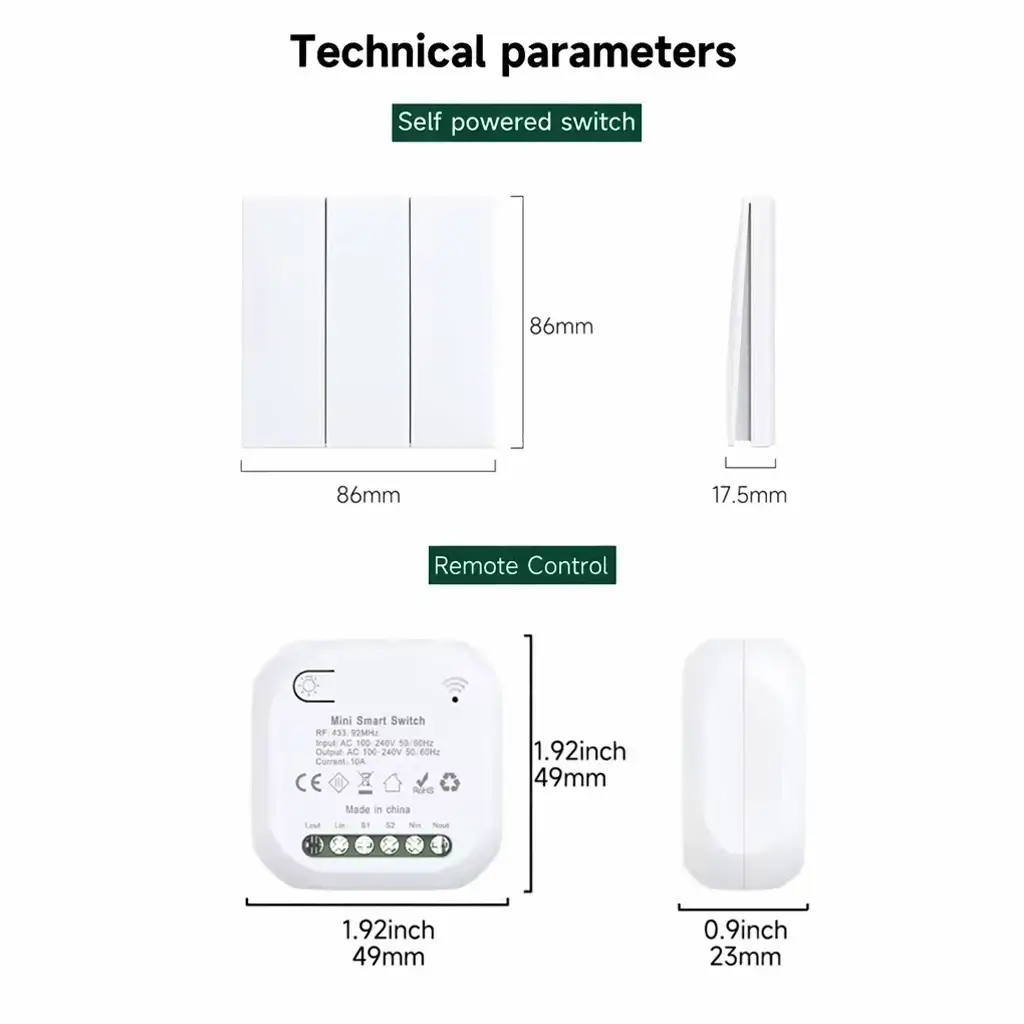

6. Product size: L49*W49*23mm(306JS)
7.Control distance: 30-100m
8.WiFi: No WiFi
Self-powered wireless switch
1. Type of work: ON /OFF
2. Power mode: Kinetic energy self-generation
3. Working frequency: 433.92 MHZ
4. Number of buttons:1-3 keys
5. Switching times: More than 200,000 times
6. Product size: L86*W86*17.5mm
7. Launch distance: 100M (outdoor), 30M (indoor)
Advantage
This is a self-powered wireless remote control switch that does not require a battery and can be used directly after buying it. The appearance is beautiful and elegant, and it is the best choice for switches:
1. Save wires and save labor, no risk of electric shock and combustion without contact with strong electricity, no heat source inside and no temperature rise influence.
2. One lamp holder can be matched with multiple free sticker switches at the same time to realize that one lamp can switch the lamp in multiple places! Solve the problems of no switch on the bed, turning on the lights at night, unreasonable circuit design, inappropriate switch height for the elderly and children at home, and inconvenient wiring at home because of aging wiring!
3. After a power failure, the power will self-extinguish to avoid waste of electricity and will not interfere with each other. It adopts digital coding and decoding technology and has no directionality; high-performance processing chip, built-in relay control, safer and more stable, super heterodyne receiving module ultra-low power consumption Strong anti-interference and high sensitivity!
Wireless switch panel:
1. Features: Self-powered No battery required.
2. Features: Waterproof Can turn it on in the wet environment, No risk of electric shock.
3. Features: Strong wireless signal.
This switch can be conteolled the lights in the room even outside the room.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide
🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.

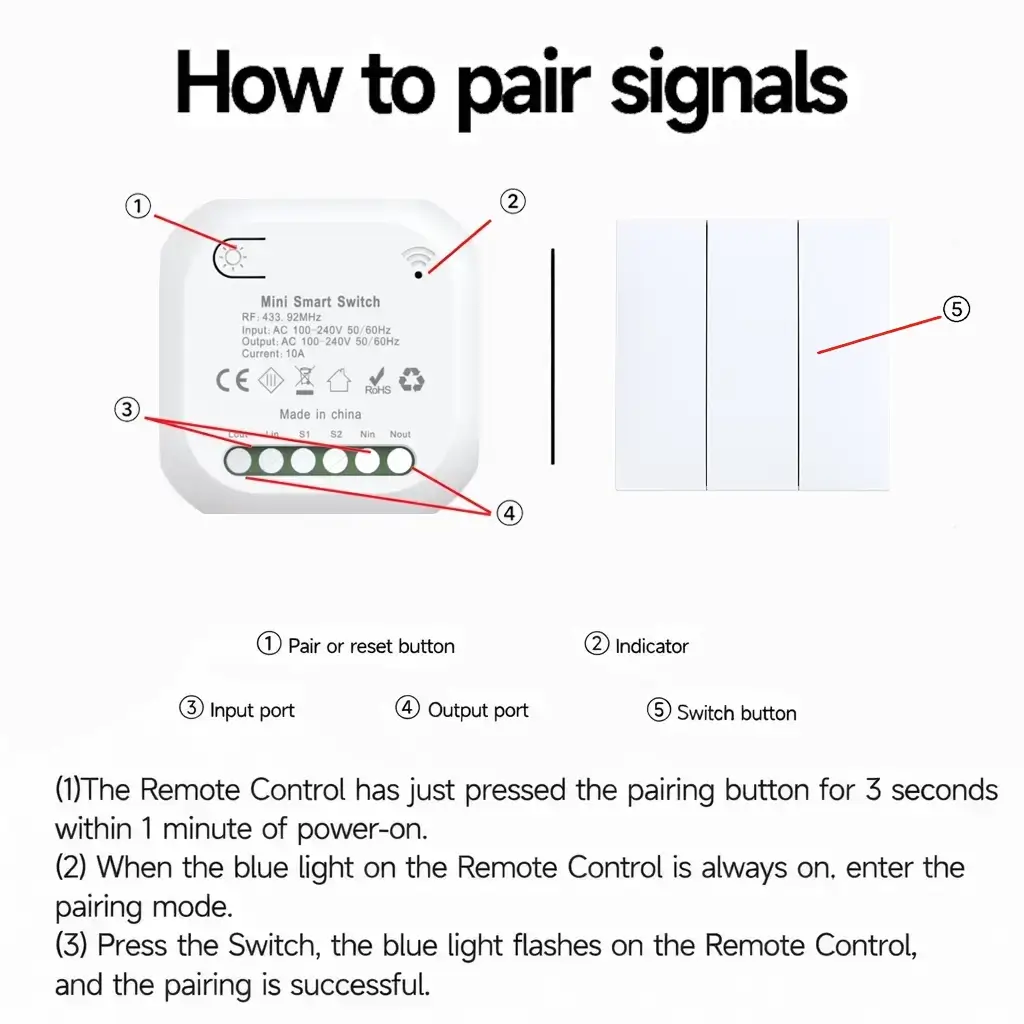

🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.

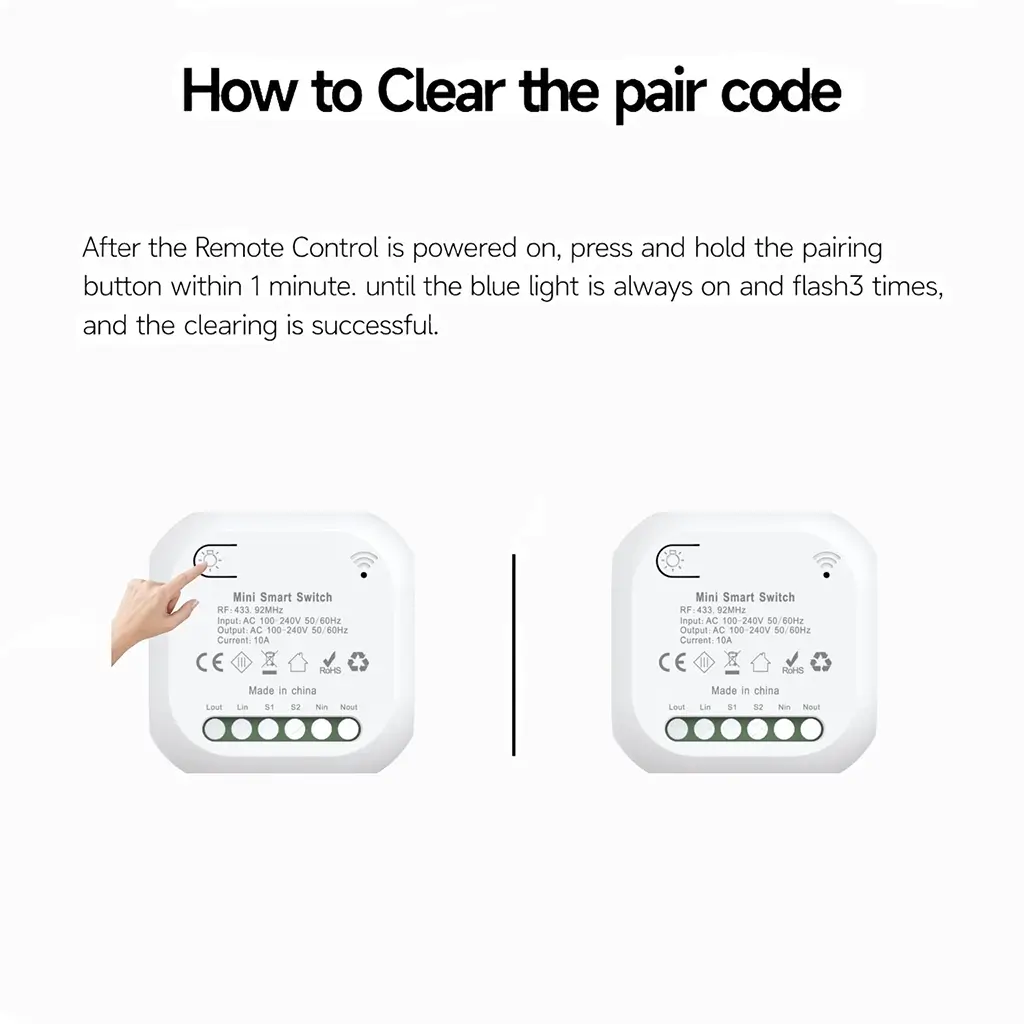

🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your Xlazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact Xlazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.
Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
Multi-Way Wireless Lighting Control Powered by Kinetic Energy
Upgrade your home lighting system with the Xlazy QX-308FS Kinetic Multi-Way Wireless Switch and 306JS Receiver Kit. Driven by advanced micro energy harvesting technology, pressing the switch panel converts physical motion into immediate RF wireless commands. Enjoy zero battery maintenance, zero wall tearing, and zero dangerous electrical wiring work.

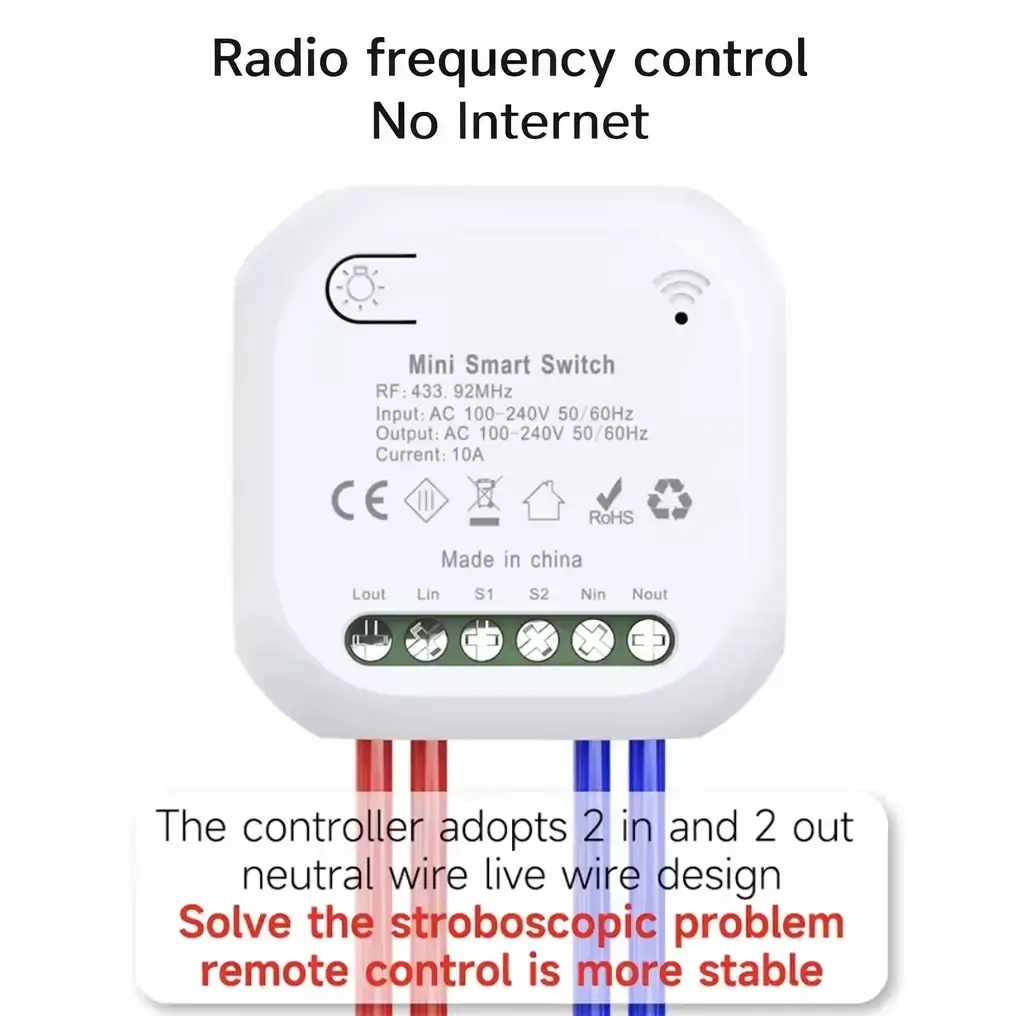

306JS Compact Wireless Light Controller
The included 306JS receiver module easily connects between your home’s power line and lighting fixtures. Its slim profile enables hidden installation inside fixture bases, wall boxes, or dropped ceilings, instantly converting standard light circuits into wirelessly controllable smart lights.
Versatile Home Lighting Solutions
Ideal for home renovations, adding bedside switches, controlling staircase lights, or replacing hardwired switches without cutting into walls:
- Surface Mounting: Stick the QX-308FS switch anywhere on walls, glass partitions, or bedside tables using double-sided adhesive tape or mounting screws.

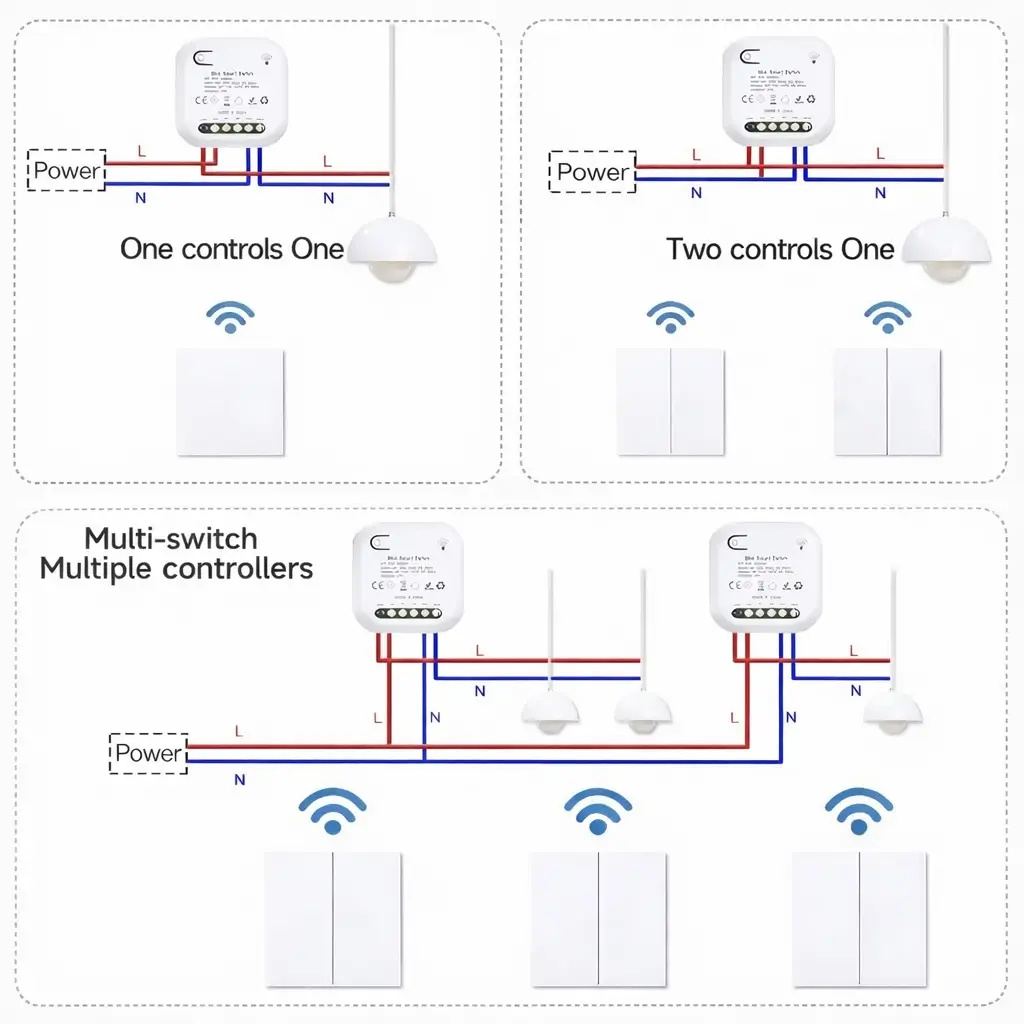

- Multi-Switch Pairing: Pair multiple QX-308FS kinetic switches with a single 306JS receiver to effortlessly set up 2-way or 3-way switching configurations across your home.
Technical Specifications
| Switch Model | QX-308FS (Kinetic Multi-Way Switch) |
| Receiver Model | 306JS (RF Receiver Controller) |
| Power Source | Kinetic Energy Harvesting (Switch, No Battery Needed) |
| Receiver Voltage | AC 85V – 260V (50/60Hz) |
| Wireless Distance | Up to 150m / 330ft (Open Area) |
| Operating Frequency | 433.92 MHz RF |
Frequently Asked Questions (FAQ)
Q: Does the QX-308FS switch require any internal batteries or hardwiring?
A: No! The switch operates on micro energy harvesting. Pressing the button generates all the power required to send a wireless RF signal to the 306JS receiver module.
Q: How do I create a 2-way or 3-way switch setup with this kit?
A: Simply connect the 306JS receiver to your light fixture, and pair two or more QX-308FS kinetic switches to the same receiver. You can then control one light from multiple locations hassle-free.
A truly sustainable upgrade for modern living. No batteries to throw away or recharge, making it totally maintenance-free. The white matte finish looks premium, and pairing the receiver with the switch took under a minute. Simple, clever, and eco-friendly.
