X-Lazy QX-001 Kinetic Self-Powered Wireless Doorbell Kit (Battery-Free, IP44 Waterproof)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
Why Switch to X-Lazy Kinetic Technology?
Say goodbye to complex wiring, damaged drywall, and dead batteries. Experience true wireless independence.
Traditional Hardware Setup
- Expensive Labor Costs: Hiring electricians costs upwards of $100–$150/hour.
- Messy Wall Alterations: Drilling, cutting drywall, and routing long internal copper wires.
- Maintenance Headaches: Standard wireless devices require frequent, annoying battery swaps.
- Fixed Placement: Once hardwired, moving switches or chimes requires breaking walls again.
X-Lazy Self-Powered Solution
- $0 Professional Installation: Easy 5-minute DIY setup with zero technical skills needed.
- 100% Battery-Free: Built-in micro energy harvesting generates power instantly on every press.
- Zero Wall Damage: Mount seamlessly on glass, tile, wood, or drywall using strong 3M adhesive.
- Ultra-Durable & Sustainable: Tested for over 200,000 presses for decades of reliable use.
- Kinetic Self-Powered Transmitter: Converts button pressing action into electricity instantly—100% battery-free and maintenance-free.
- IP44 Weatherproof Housing: Built to withstand harsh outdoor elements, including rain, snow, frost, and high humidity.
- Long-Range Wireless Transmission: Strong signal penetration with up to 150m (490ft) open-area coverage across walls and doors.
- Selectable Chimes & Adjustable Volume: Offers multiple clear chimes with 4 adjustable volume levels plus silent visual LED alert mode.
- Quick Wall Mount Setup: Mount the push button in seconds using supplied heavy-duty adhesive tape or installation screws.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
Technical parameters
1. Operating voltage: AC 110-250V
2. Power consumption: 0.25W
3. Wireless frequency: 433 MHz
4. Ringtone volume: ≥50dB/1m+
5. Operating temperature: -10 °C ~ +45 °C
6. Wireless distance: 150 meters (open space)

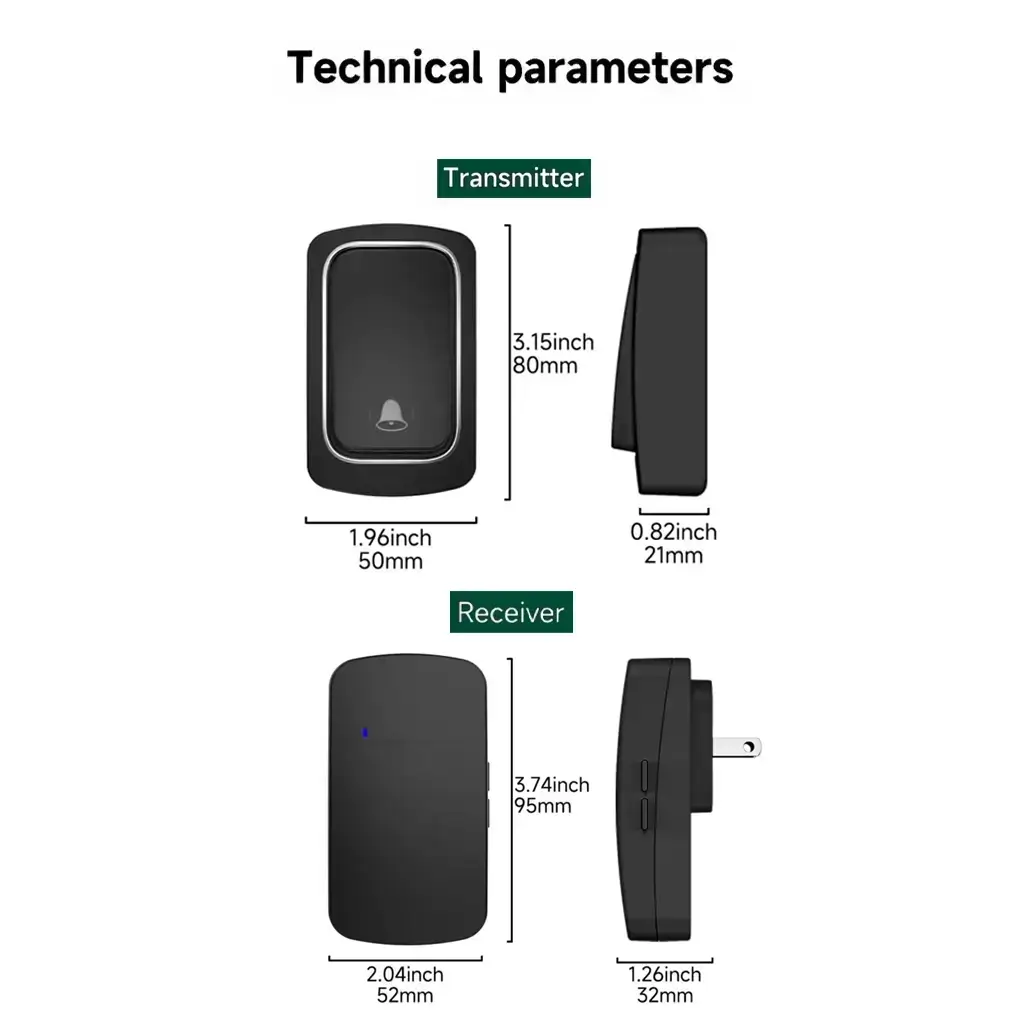

7. Receiver size: L95 × W52 × H32mm
8. Transmitter: no need battery
9. Transmitter size: L80 × W50 × H21mm
Advantage
1. This doorbell does not need batteries and wiring. It is plug and play, convenient and practical, and easy to install.
2. Built-in 38 welcome music/4 adjustable volume (including mute).
3. IP44 waterproof grade, can effectively prevent rain intrusion, and can prevent sun and water.
4. 150 meters remote control distance (open space), indoor distance is about 50 meters (no partition) (this data is the obstacle free test distance of the experimental open space, the actual distance will vary depending on the use environment and the obstacles, please take the actual distance as the standard).
5. Applicable scene: residence, hotel, villa, hospital.
6. Function: learning code.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide
🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.

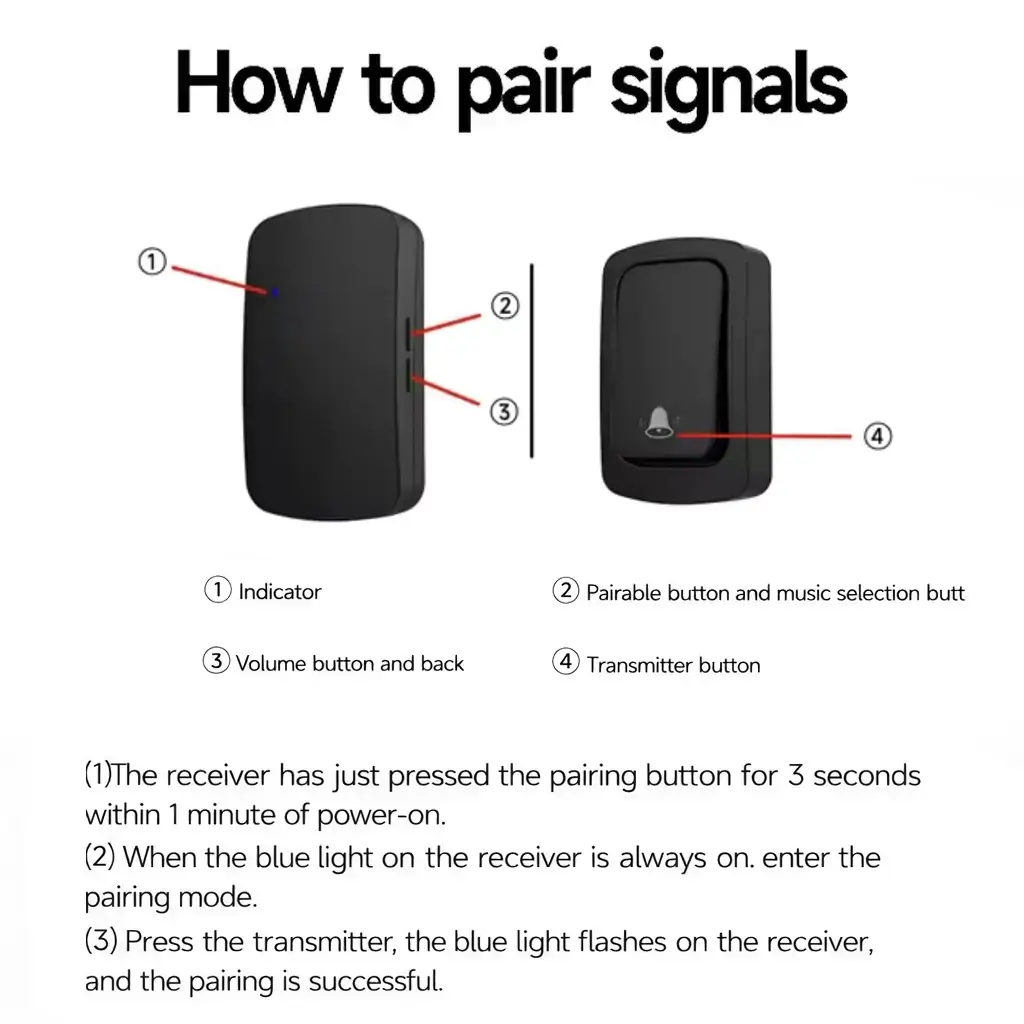

🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.

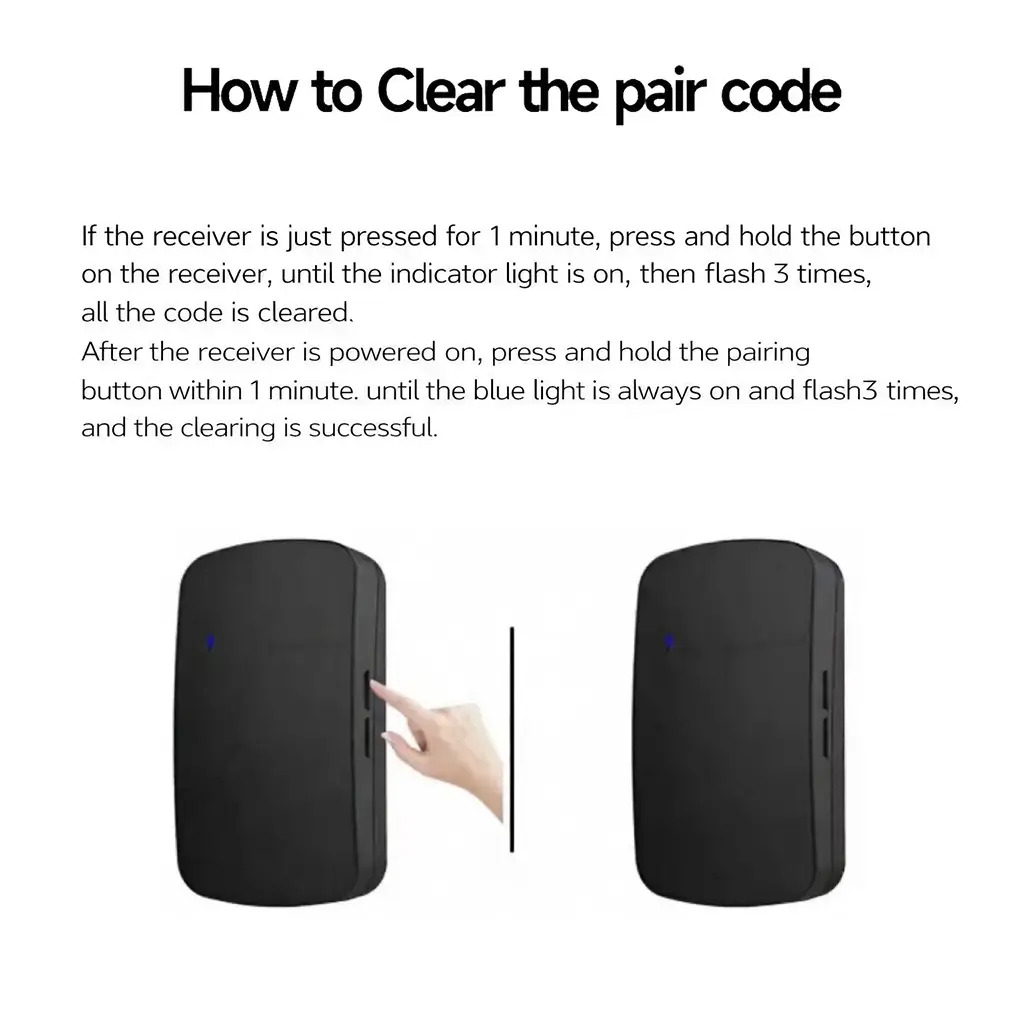

🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your X-Lazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact X-Lazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.
Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
Eco-Friendly Kinetic Micro Energy Harvesting
Say goodbye to dead batteries and unexpected visitor missed alerts with the X-Lazy QX-001 Kinetic Self-Powered Wireless Doorbell. Utilizing micro energy harvesting technology, the outdoor transmitter generates electrical power from the physical motion of each press, sending reliable RF signals straight to your indoor receiver.
Durable IP44 Outdoor Waterproof Protection
Designed for all-season outdoor exposure, the QX-001 push button features an IP44 waterproof rated casing. Heavy rain, winter frost, or direct summer sun will not interfere with signal transmission or cause internal damage.

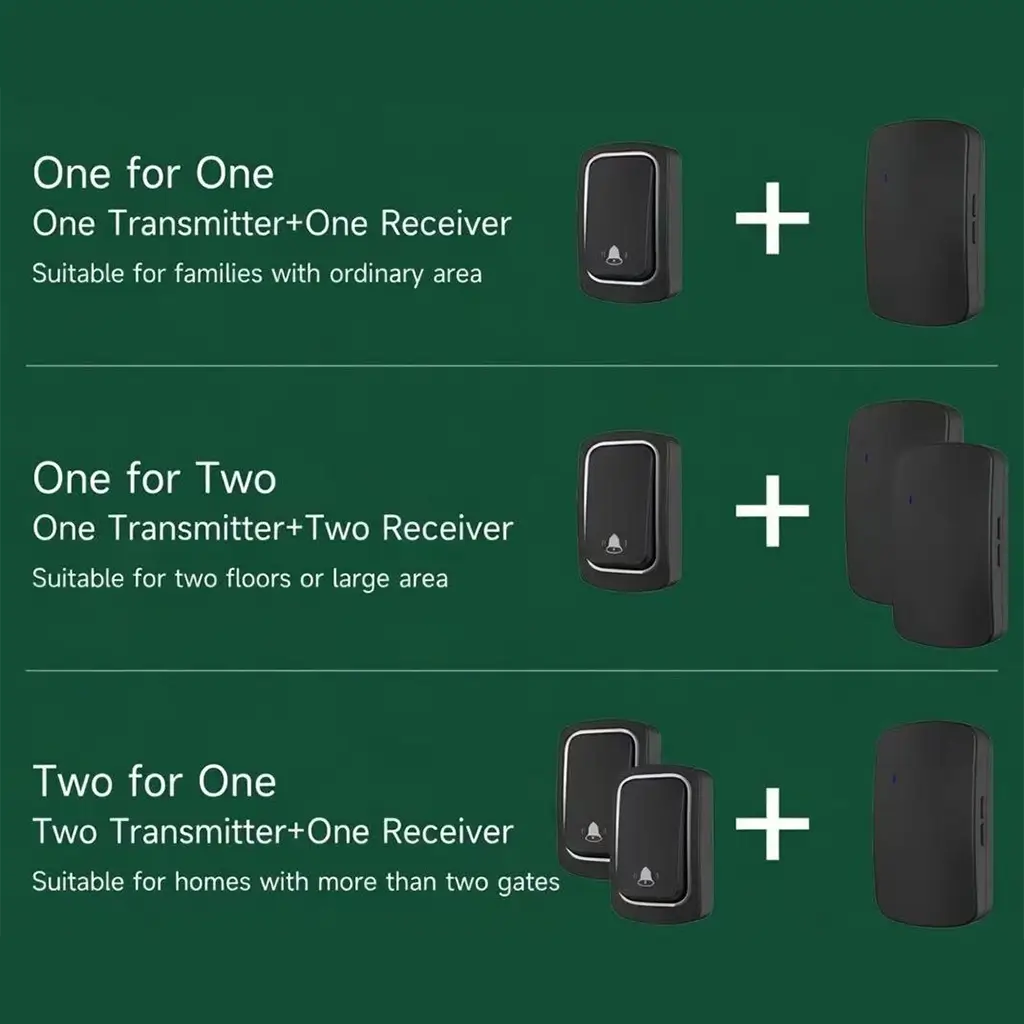

Flexible Multi-Kit Setups
Choose the combination that best fits your residential or commercial layout:
- 1 Transmitter + 1 Receiver: Standard entry setup for single-floor apartments or offices.
- 1 Transmitter + 2 Receivers: Recommended for multi-story homes to hear alerts on separate floors.
- 2 Transmitters + 1 Receiver: Ideal for properties with distinct front and back entrance gates.
Technical Specifications
| Operating Voltage | AC 110V – 250V (Plug-in Indoor Receiver) |
| Power Source | Kinetic Micro Energy Harvesting (Transmitter, No Battery Required) |
| Waterproof Rating | IP44 Outdoor Weatherproof |
| Wireless Distance | Up to 150m / 490ft (Open Area) |
| Frequency | 433.92 MHz RF Signal |
Frequently Asked Questions (FAQ)
Q: Does the outdoor button really require no battery or wiring?
A: Exactly! It relies on micro energy harvesting technology, converting your finger press motion into electricity to trigger the receiver chime instantly.
Q: Is the installation easy for non-technical users?
A: Yes, installation takes less than two minutes. Attach the outdoor push button with double-sided tape or screws, and plug the receiver into any indoor socket.
