Xlazy QX-601FS Kinetic Wireless Wall Switch and Receiver Kit (306JS Controller, Battery-Free)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
- Kinetic Self-Powered Switch (QX-601FS): Harnesses physical pressing force to power the signal—100% battery-free, eco-friendly, and maintenance-free.
- Compact Receiver Controller (306JS): Fits easily into standard junction boxes, fixture bases, or drop ceilings for seamless wireless light control.
- Zero Wiring Required for Switch: Mount the wireless switch anywhere on glass, wood, marble, or tile without damaging walls.
- Strong RF Signal Transmission: High-penetration 433MHz RF wireless connection with reliable range through concrete walls and doors.
- Safe & Waterproof Operation: Fully sealed switch design with IP65 moisture resistance, safe for damp environments like bathrooms and kitchens.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
No battery US standard self-powered wireless switch IP44 waterproof switch Permanent battery life Simple installation One-to-many, many-to-one smart switch
Remote Control

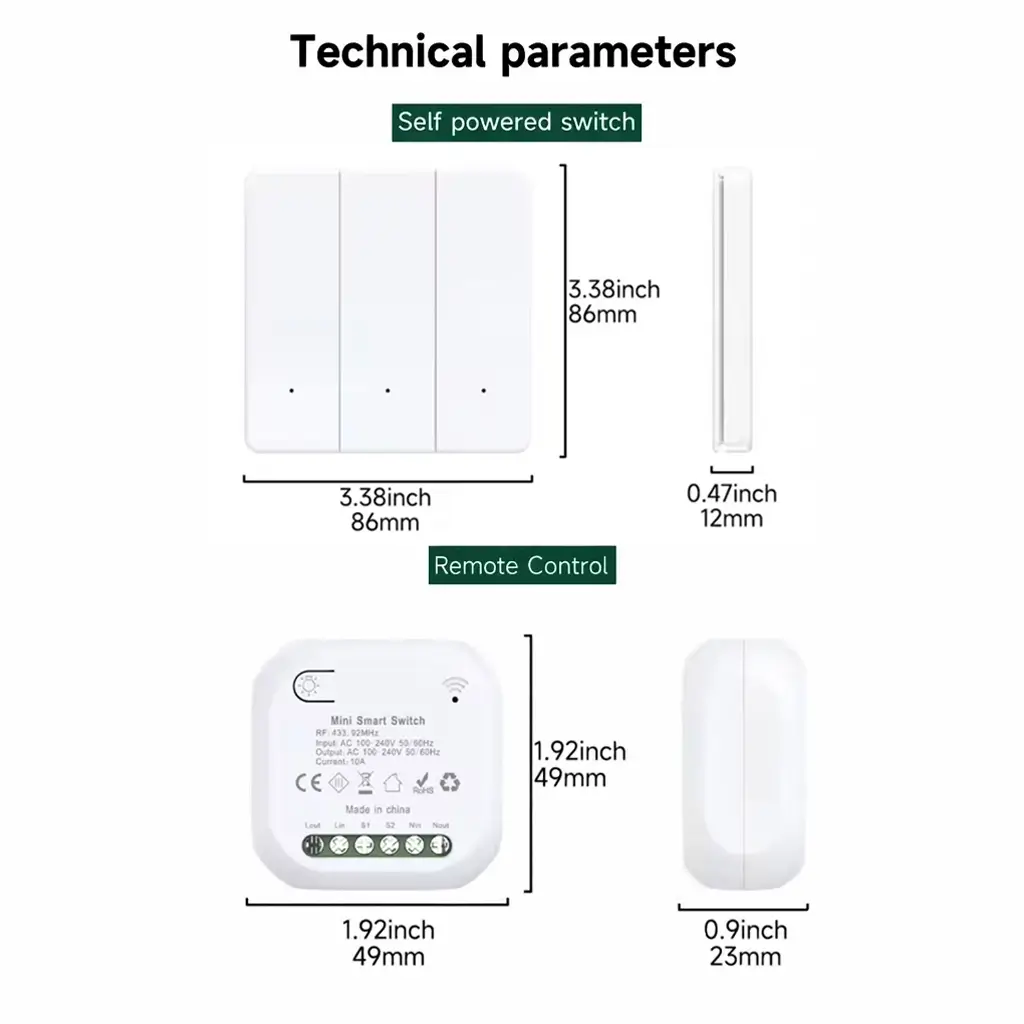

1. Working voltage: AC 100V-240V 50/60Hz
2. Rated Current: AC 10A
3. Maximum current: 16A
4. Working frequency: 433.92MHZ
5. Product size: L49*W49*23mm(306JS)
6.Control distance: 30-100m
7.WiFi: No WiFi
Self-powered wireless switch
1. Type of work: ON /OFF
2. Power mode: Kinetic energy self-generation
3. Working frequency: 433.92 MHZ
4. Number of buttons:1-3 keys
5. Switching times: More than 200,000 times
6. Product size: L86*W86*12mm
7. Launch distance: 150M (outdoor), 30M (indoor)
Advantage
This is a self-powered wireless remote control switch that does not require a battery and can be used directly after buying it. The appearance is beautiful and elegant, and it is the best choice for switches:
1. Save wires and save labor, no risk of electric shock and combustion without contact with strong electricity, no heat source inside and no temperature rise influence.
2. One lamp holder can be matched with multiple free sticker switches at the same time to realize that one lamp can switch the lamp in multiple places! Solve the problems of no switch on the bed, turning on the lights at night, unreasonable circuit design, inappropriate switch height for the elderly and children at home, and inconvenient wiring at home because of aging wiring!
3. After a power failure, the power will self-extinguish to avoid waste of electricity and will not interfere with each other. It adopts digital coding and decoding technology and has no directionality; high-performance processing chip, built-in relay control, safer and more stable, super heterodyne receiving module ultra-low power consumption Strong anti-interference and high sensitivity!
Wireless switch panel:
1. Features: Self-powered No battery required.
2. Features: Waterproof Can turn it on in the wet environment, No risk of electric shock.
3. Features: Strong wireless signal.
This switch can be conteolled the lights in the room even outside the room.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide

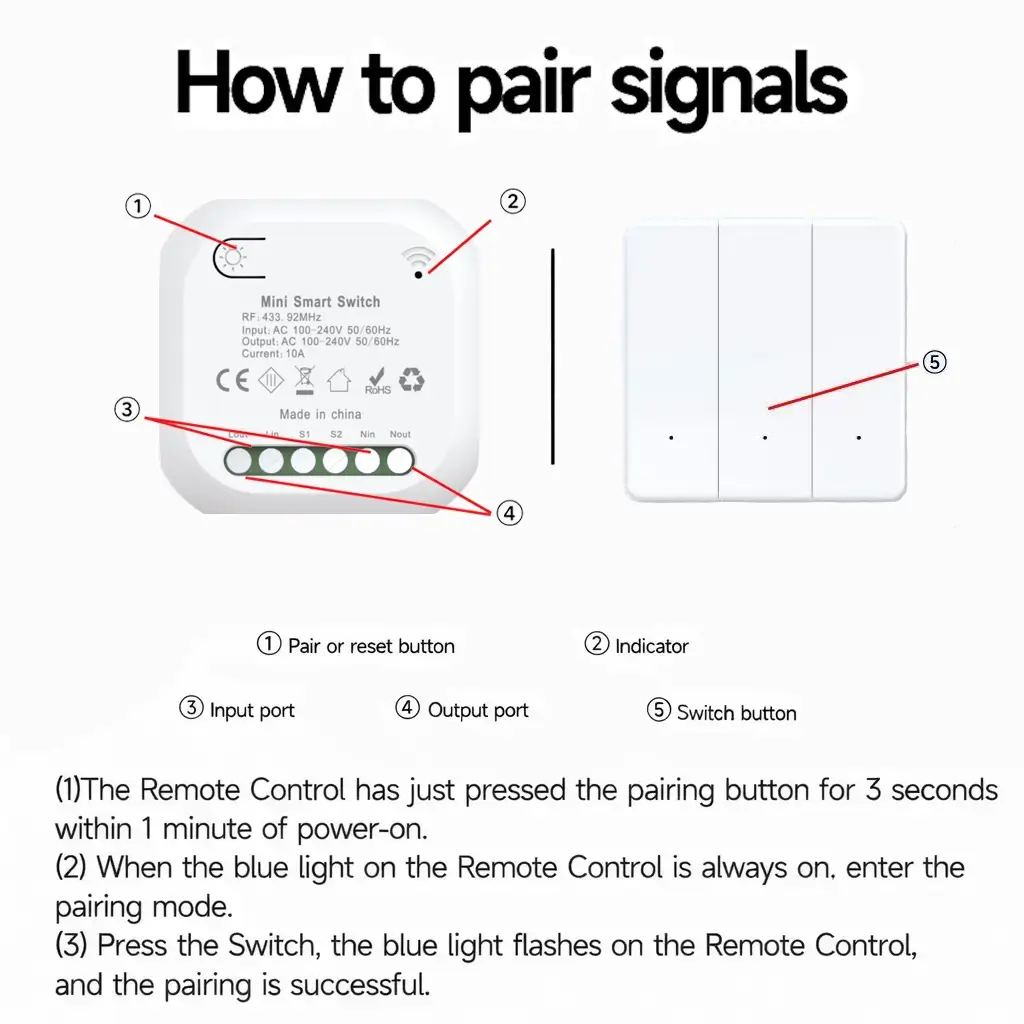

🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.
🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.
🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your Xlazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact Xlazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.

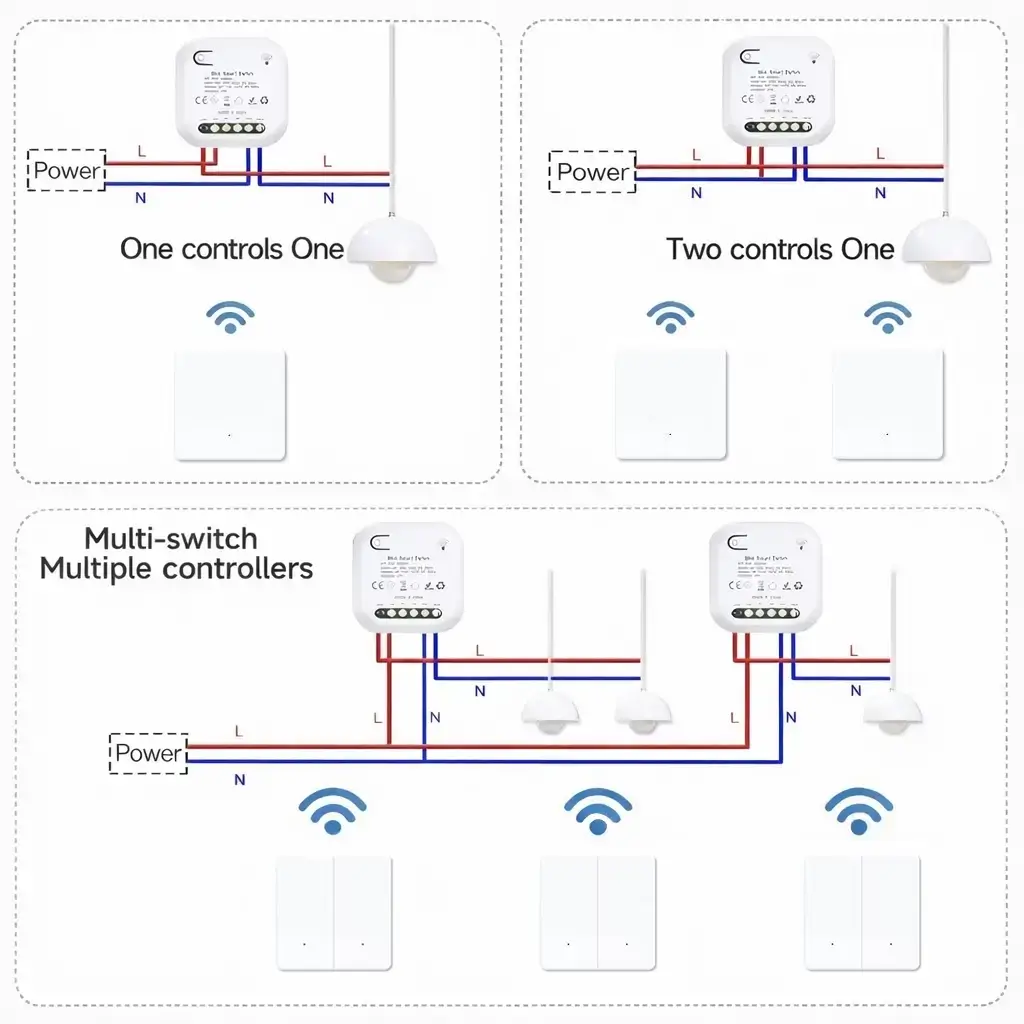

Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
Battery-Free Kinetic Energy Harvesting Technology
Transform your home lighting setup with the Xlazy QX-601FS Kinetic Wireless Switch and 306JS Receiver Kit. Utilizing micro energy harvesting technology, pressing the switch button instantly generates electrical energy to send an RF command to the 306JS controller. Enjoy reliable light control without messy cabling, wall chiseling, or battery replacements.
306JS Compact Wireless Receiver Controller
The included 306JS receiver module easily connects between your power source and light fixtures. Its small footprint allows discreet installation behind light switches, inside ceiling canopies, or within junction boxes, turning any standard lamp into a wireless controllable light.
Flexible Application & Easy Installation
Ideal for home renovations, staircases, bedside lighting, or retrofitting older homes without neutral wires:
- Stick Anywhere: Mount the QX-601FS switch on glass, drywall, or wooden furniture using heavy-duty adhesive or mounting screws.
- Multi-Switch Control: Pair multiple kinetic switches to a single 306JS receiver to create convenient 3-way or multi-location switching setups.
Technical Specifications
| Switch Model | QX-601FS (Kinetic Wireless Switch) |
| Receiver Model | 306JS (RF Controller Module) |
| Power Source | Kinetic Self-Powered (Switch, No Battery Needed) |
| Receiver Input Voltage | AC 85V – 260V (50/60Hz) |
| Wireless Distance | Up to 150m / 330ft (Open Area) |
| Working Frequency | 433.92 MHz RF |
Frequently Asked Questions (FAQ)
Q: Does the QX-601FS wall switch really need no batteries or power wiring?
A: Yes! The switch uses kinetic energy harvesting. Pressing the button generates enough electricity to send a wireless RF signal to the 306JS receiver.
Q: Can I create a 3-way switch setup (controlling one light from two locations)?
A: Absolutely. You can pair two or more QX-601FS kinetic switches with one 306JS receiver controller to control a single light from different places in your home.
Revolutionized our home lighting setup. I placed this switch next to our bedside where there was no previous wiring—works flawlessly every time. The tactile feedback when pressed is crisp, knowing it generates its own energy never gets old. Exceptional product!
