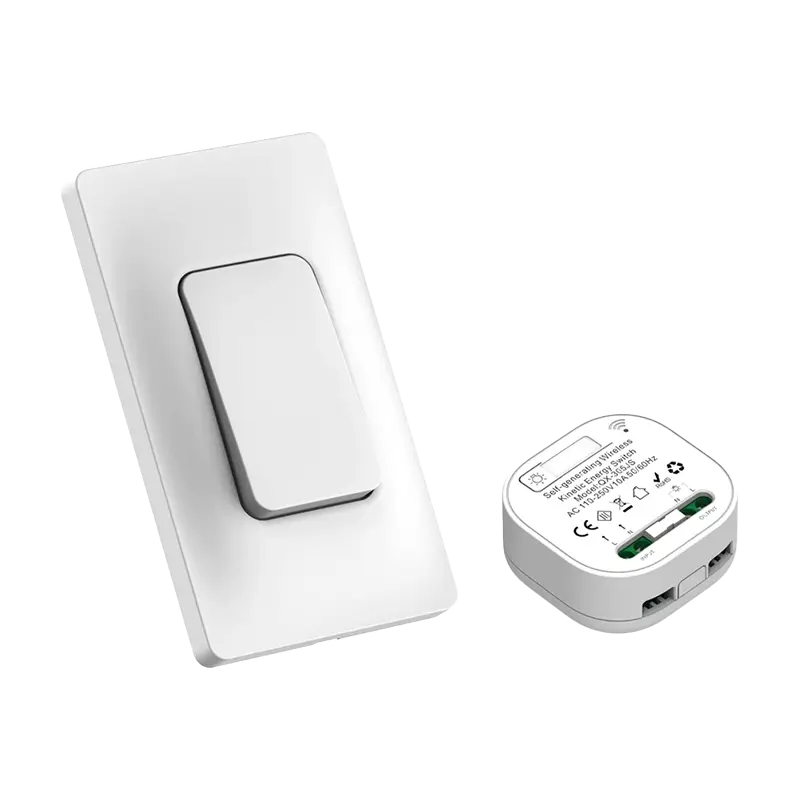

Xlazy QX-12070FS US Standard Kinetic Wireless Switch and Receiver Kit (305JS Controller, Battery-Free)
- 5-Year Warranty
- Free Express Shipping (Ships in 48 Hours)
- Secure SSL Checkout
- Internationally Certified
- Original Factory Support
Every order is packed with 100% plastic-free, FSC-certified materials to protect both your product and our planet.
- US Standard Design: Perfectly proportioned to fit North American wall spaces and aesthetic preferences for seamless modern home integration.
- Kinetic Self-Powered Switch: Converts mechanical pressing force into instant electrical power—100% battery-free, eco-friendly, and maintenance-free.
- Compact 305JS Receiver: Fits discreetly into standard junction boxes, fixture bases, or drop ceilings for concealed wireless lighting control.
- Zero-Damage Wall Installation: Mount the wireless wall switch on drywall, glass, wood, marble, or tile using double-sided adhesive or mounting screws.
- Strong 433MHz RF Signal: Reliable long-range wireless connectivity penetrating walls and doors up to 100m in open spaces.
Wireless freedom, redefined.
Instant Response:
30m indoor stable control.
Kinetic Powered:
No batteries, ever.
200,000 Clicks:
Built for a sustainable lifetime.
Safety & Quality Assured:
Certified by FCC, CE, and RoHS.
Products Details
Parameter
No battery US standard self-powered wireless switch IP44 waterproof switch Permanent battery life Simple installation One-to-many, many-to-one smart switch
Remote Control
1. Working voltage: AC 100V-240V 50/60Hz
2. Rated Current: AC 10A
3. Standby power: < 0.15W
4. Working frequency: 433.92MHZ
5. Storage switch quantity: 5 transmitters

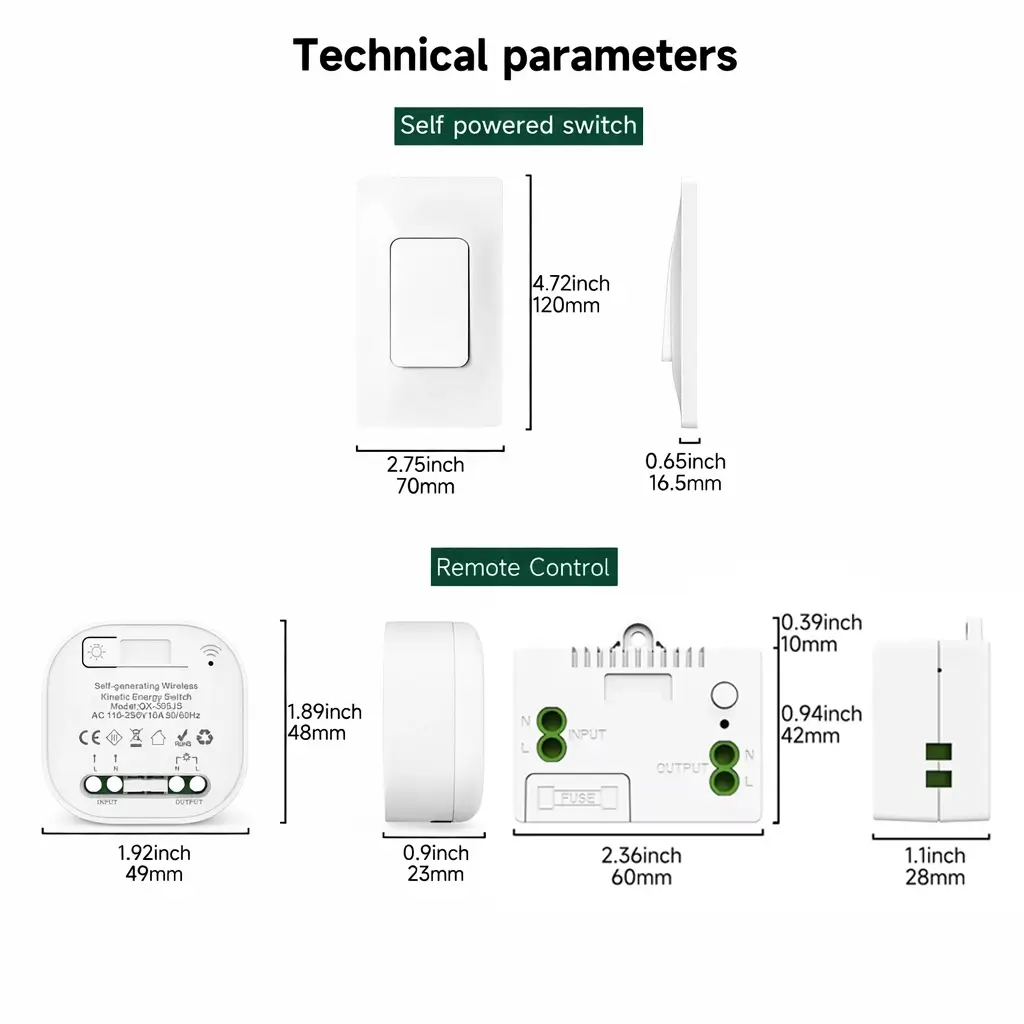

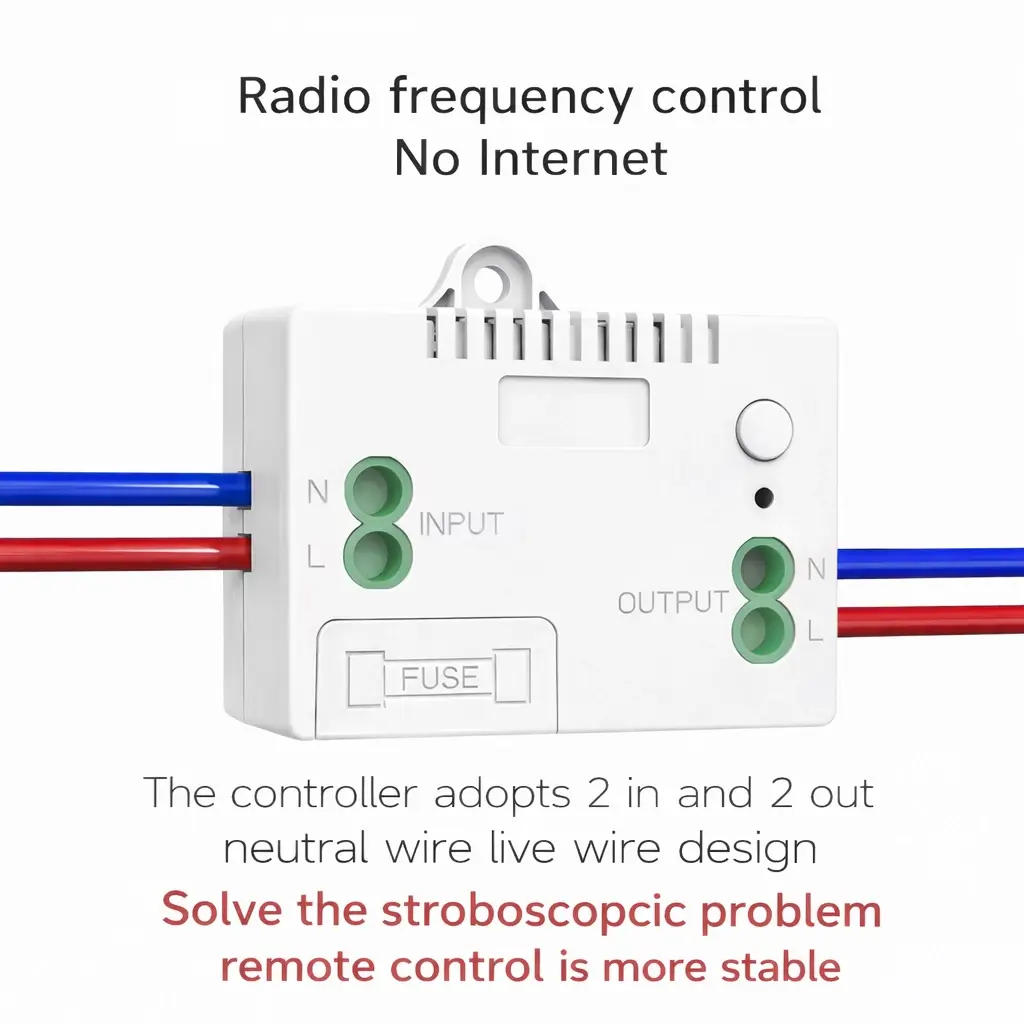

6. Product size: L60*W43*28mm(301JS);L49*W48*23mm(305JS)
7.Control distance: 30-100m
8.WiFi: No WiFi
Self-powered wireless switch
1. Type of work: ON /OFF
2. Power mode: Kinetic energy self-generation
3. Working frequency: 433.92 MHZ
4. Number of buttons:1-2 keys
5. Switching times: More than 200,000 times
6. Product size: L120*W70*16.5mm
7. Launch distance: 150M (outdoor), 30M (indoor)
Advantage
This is a self-powered wireless remote control switch that does not require a battery and can be used directly after buying it. The appearance is beautiful and elegant, and it is the best choice for switches:
1. Save wires and save labor, no risk of electric shock and combustion without contact with strong electricity, no heat source inside and no temperature rise influence.
2. One lamp holder can be matched with multiple free sticker switches at the same time to realize that one lamp can switch the lamp in multiple places! Solve the problems of no switch on the bed, turning on the lights at night, unreasonable circuit design, inappropriate switch height for the elderly and children at home, and inconvenient wiring at home because of aging wiring!
3. After a power failure, the power will self-extinguish to avoid waste of electricity and will not interfere with each other. It adopts digital coding and decoding technology and has no directionality; high-performance processing chip, built-in relay control, safer and more stable, super heterodyne receiving module ultra-low power consumption Strong anti-interference and high sensitivity!
Wireless switch panel:
1. Features: Self-powered No battery required.
2. Features: Waterproof Can turn it on in the wet environment, No risk of electric shock.
3. Features: Strong wireless signal.
This switch can be conteolled the lights in the room even outside the room.
Package
Eco-Friendly Packaging Specifications
Outer Box: 100% Recycled FSC-Certified Corrugated Cardboard (Uncoated).
Printing: Sustainable Soy-Based Non-Toxic Inks.
Sealing: Biodegradable Water-Activated Kraft Paper Tape.
Internal Cushioning: Plastic-Free FSC-Certified Honeycomb Paper Wrap.
Standard: 100% Recyclable & Plastic-Free.
Guide

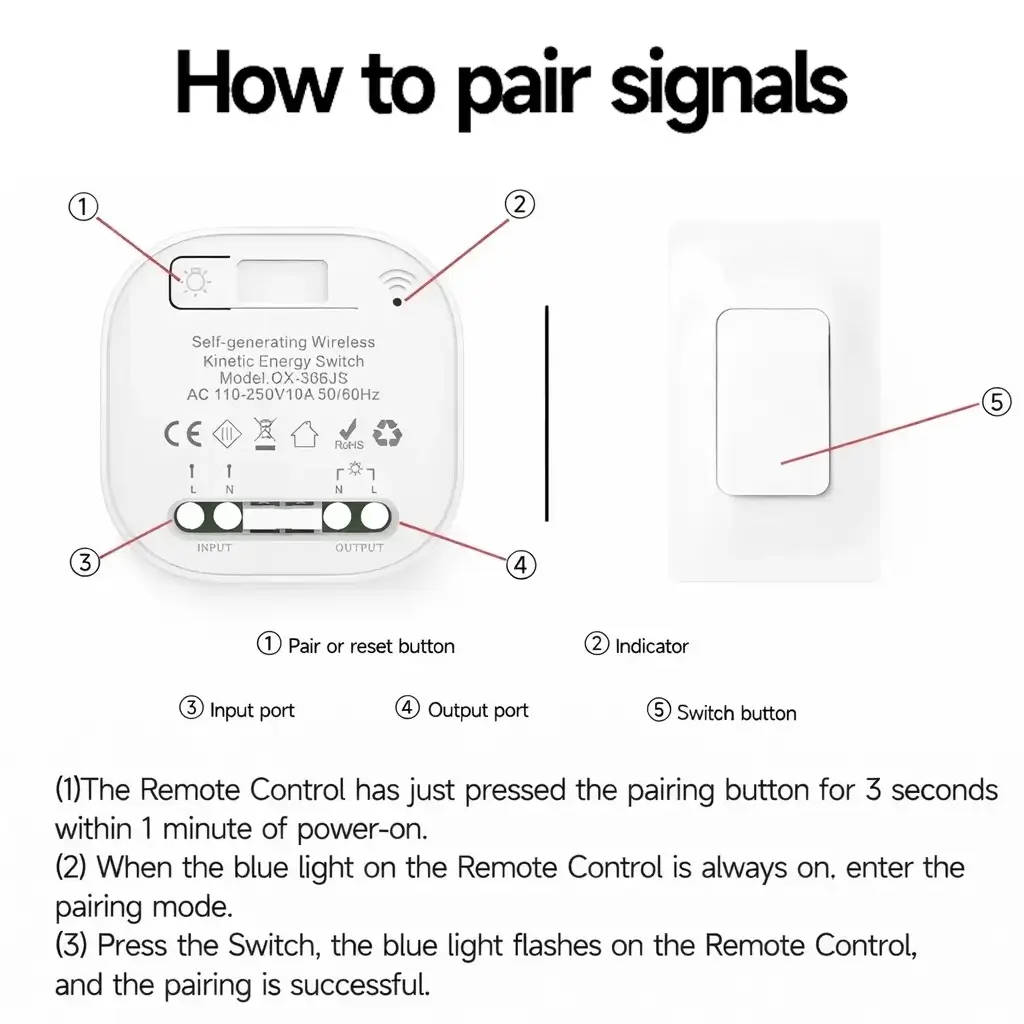

🔍How to pair/clear signal?
In fact, when we do the product testing for you, the pairing is already done. You don’t need to pair it yourself. If you need to pair the code yourself, please clear the code first and then pair it.
🔍Pair Signal
1. Press the controller for 3 seconds.
2. The code indicator light is on.
3. Press the wireless switch 1 time, the code indicator light 1 time, successful.

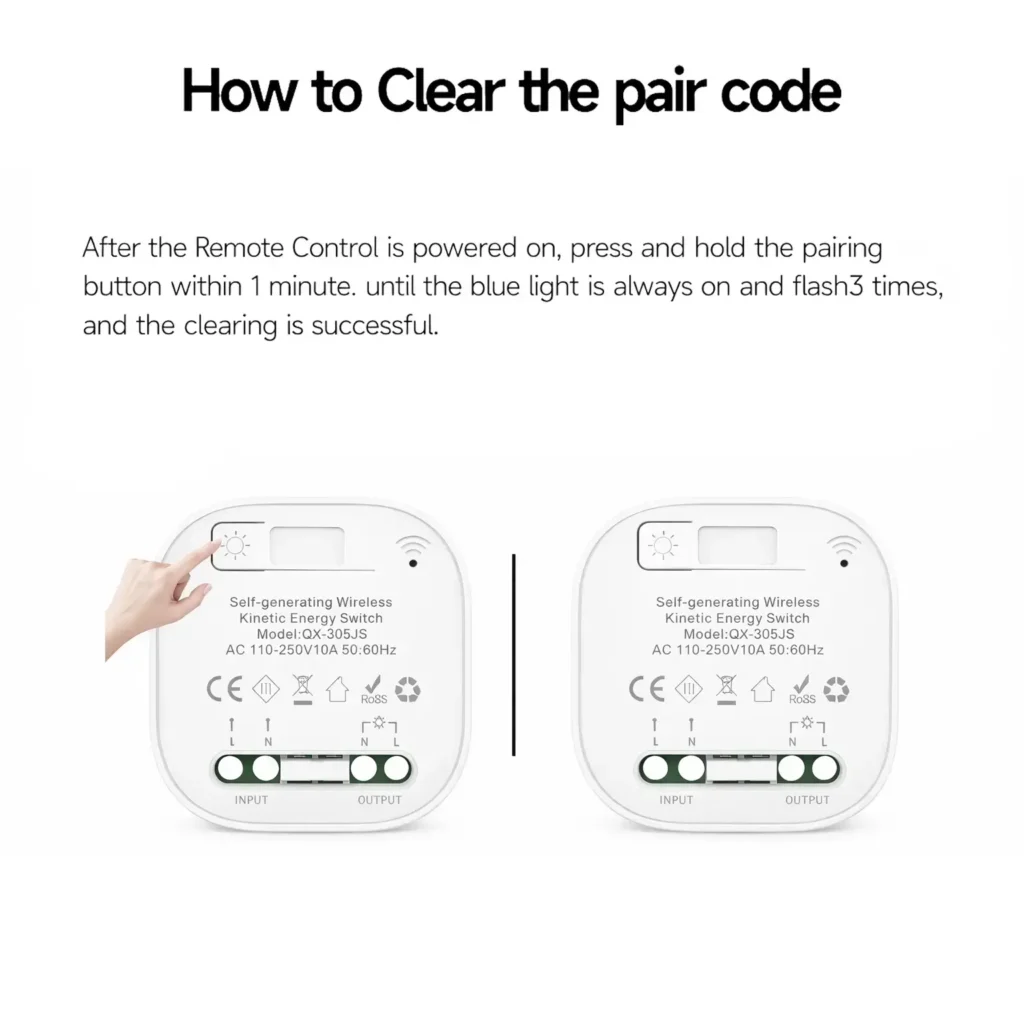

🔍Clear Signal
Press and hold the controller until the code indicator flashes 3 times.
Setting up your Xlazy ecosystem is designed to be effortless. Download our visual guide for step-by-step instructions.
Need Help? Contact Xlazy Support.
Intuitive Interaction. Precision Certified.
Advanced RF Signal Control. Wiring Made Simple.

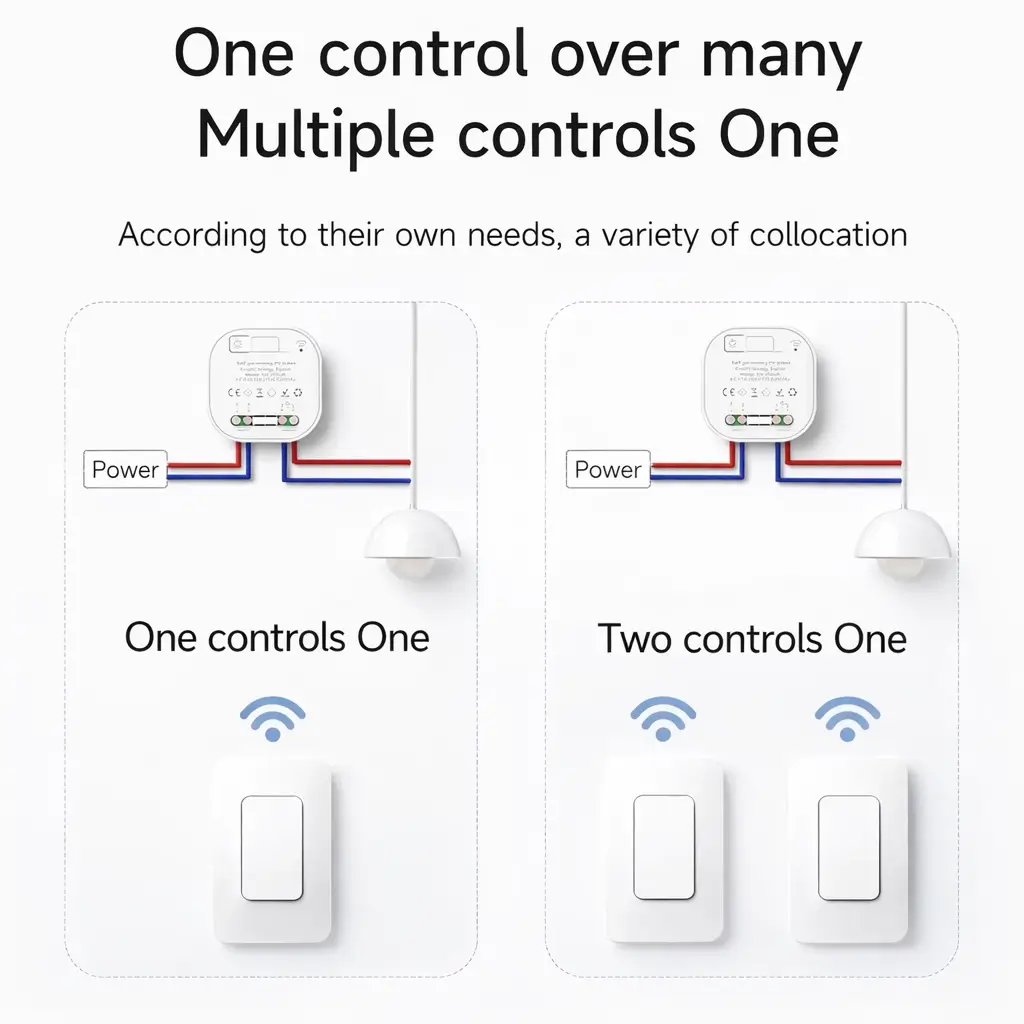

Flexible Multi-Control Pairing
One-to-Many & Many-to-One Synchronization
Stable Zero-Interference Connectivity
Instant Response & Reliable Signal Transmission
Certified Compliance
CE, FCC, RoHS, and FSC certified. Precision technology meets global standards.
US Standard Kinetic Lighting Solution
Bring battery-free convenience to your home with the Xlazy QX-12070FS US Kinetic Wireless Switch and 305JS Receiver Kit. Driven by advanced micro energy harvesting technology, every button press generates electricity to send instant RF control signals to the 305JS controller module—eliminating batteries, wall chiseling, and complex re-wiring.
305JS Compact Wireless Controller Integration

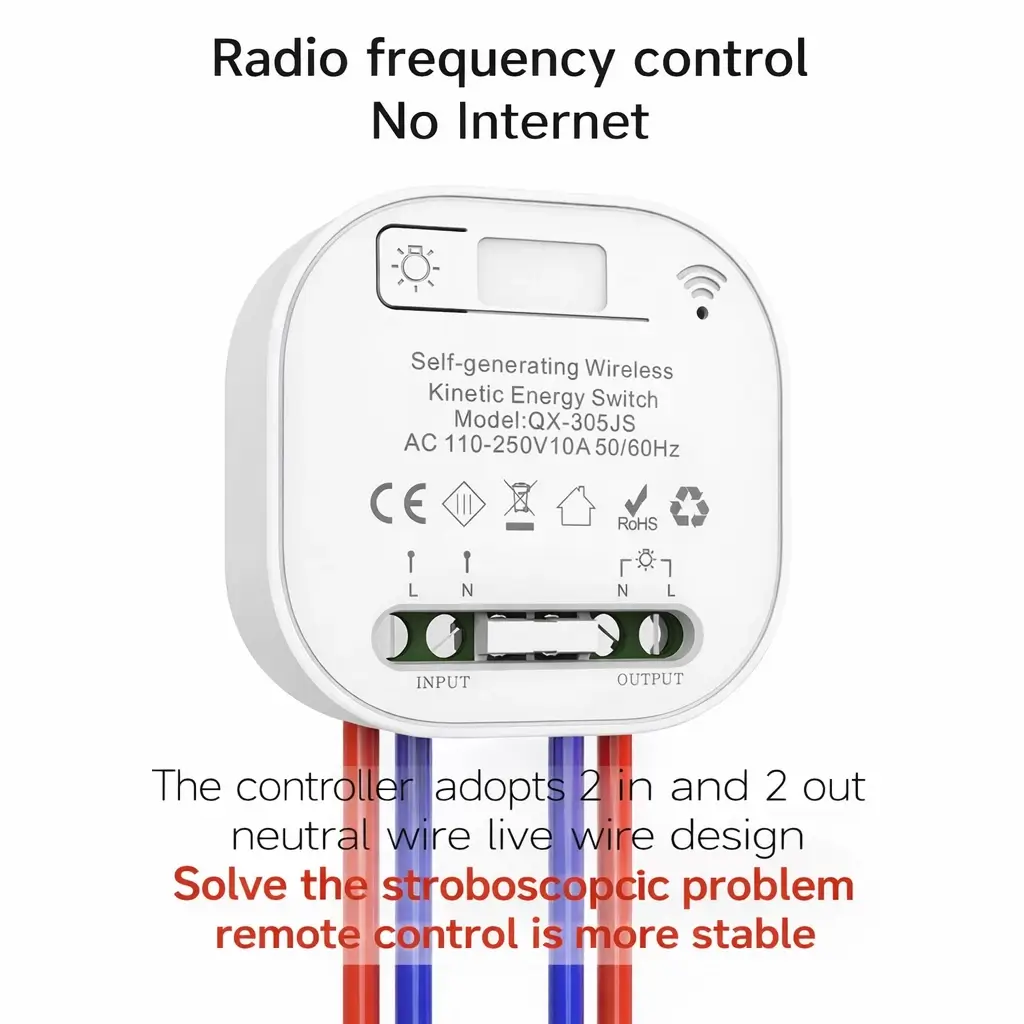

The accompanying 305JS receiver easily connects between your home’s main power supply and lighting fixtures. Its compact form factor enables hidden installation inside fixture bases, wall junction boxes, or ceiling light canopies, instantly retrofitting standard fixtures into wireless switchable lights.
Ideal for Home Remodeling & Multi-Way Setup
Perfect for North American home renovations, adding bedside light switches, basement illumination control, or configuring 3-way switches without running long wire runs:
- Easy Surface Mounting: Mount the switch panel on glass doors, headboards, tile walls, or drywall without cutting into electrical boxes.
- Multi-Location Switching: Pair multiple QX-12070FS switches with a single 305JS receiver to easily set up multi-way light control across bedrooms and hallways.
Technical Specifications
| Switch Model | QX-12070FS (US Standard Kinetic Switch) |
| Receiver Model | 305JS (RF Receiver Controller) |
| Power Source | Kinetic Energy Harvesting (Switch, No Battery Needed) |
| Receiver Input Voltage | AC 85V – 260V (50/60Hz) |
| Wireless Range | Up to 150m / 330ft (Open Area) |
| Operating Frequency | 433.92 MHz RF |
Frequently Asked Questions (FAQ)
Q: Is the QX-12070FS switch compatible with US wall plate sizes?
A: Yes, it is specially designed according to North American US standard dimensions, allowing it to seamlessly match US home decor styles.
Q: Does the US wireless switch need batteries or neutral wire connection?
A: No! The QX-12070FS switch uses kinetic energy harvesting technology. It needs no battery and no physical wire connection to the switch itself—only the 305JS receiver connects to your light circuit.
